Designation:

C-9

Info
Manufacturer: Caterpillar Inc.
Product type: Engine and Systems

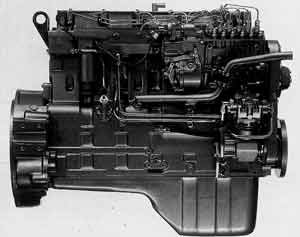

Name: Diesel engine

In-line 6-cylinder engine with a displacement of 8.3 litres and with outputs of 150 to 310 hp(112to231 kW). The advanced C series engine uses a modern unitary construction for ease of maintenance and repairability. Heavy-duty components include a massively strong steel crank with hardened fillets and large bearing areas for strength and durability. The latest C series power ratings are 224 kW (300 bhp) and 261 kW (350 bhp).

Specifications:
Property Value
Engine power output (h.p.)
400
Rated speed (r.p.m.)
2200
Maximum torque (Nm)
1600
Number of cylinders
6

Included in:
Product Amount
Caiman MTV (Mine protected carrier)
1
CM-32 Yunpao (Wheeled armoured personnel carrier)
1
MLI-84 (Infantry fighting vehicle)
1
MLI-84M (Modernization of the vehicle)
1
Piranha III 8x8 (Wheeled armoured personnel carrier)
1
Piranha III CBRN (Nuclear/biological/chemical reconnaissance vehicle)
1
Piranha IIIC (Command vehicle)
1
Piranha IIIC (Reconnaissance Vehicle)
1
Sakal BVP-M2 SKCZ (Modernization of the vehicle)
1
TERREX (Wheeled armoured personnel carrier)
1
Yavuz (Wheeled armoured personnel carrier)
1
