Designation:

YW 381

Info
Manufacturer: NORINCO - China North Industries Group Corporation - CNGC
Product type: Armoured Vehicles
Name: Self-propelled mortar

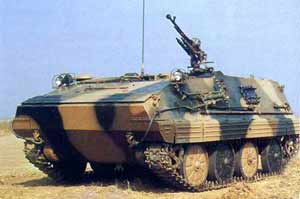

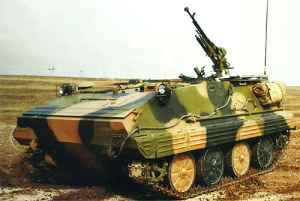

The YW-381 self-propelled 120mm mortar system is basically a Type 64 120mm mortar mounted inside the troop compartment of the Type 63 (YW-531) armoured personnel carrier (APC). The mortar is fixed on the floor of the APC's troop compartment, and can not move in traverse. Mortar tube elevation range is from 45~80 degree. The mortar crew are accommodated in the fully armoured troop compartment. A round window is on the roof of the compartment for mortar firing. The barrel muzzle reaches out of the compartment to reduce the blast effects on the mortar crew. Auxiliary weapon includes a Type 59 12.7 anti-aircraft machinegun mounted on the roof of the vehicle. NORINCO also developed the YW382 120mm self-propelled mortar, which is based on the improved Type 85 APC carrying a Type 86 120mm mortar. Both systems were developed for export market only and did not enter service with the PLA.

Specifications:
Property Value
Crew
2
Troops
4
Power-to-weight ratio (h.p./t)
22.7
Max. road speed (km/h)
65
Max. road range (km)
500
Gradient (%)
60
Side slope (%)
30
Vertical obstacle (mm)
600
Max. water speed (km/h)
6
Main weapon caliber (mm)
120
Ammunition of the main gun
50
Firing range (m)
7500
Elevation (degree)
80
Depression (degree)
45
Traverse arc (degree)
10
Auxiliary gun calibre (mm)
12.7


Has folowing part:
Total Amount
BF8L413FC (Diesel engine)
1
