Designation:

X150-960

Info
Manufacturer: NORINCO - China North Industries Group Corporation - CNGC
Product type: Engine and Systems
Name: Diesel engine

Description

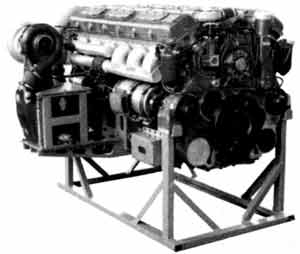

The China North Industries Corporation (NORINCO) X150-960 is a turbocharged, intercooled, four-stroke, direct injection, high-speed diesel engine which is suitaplefor installation in tracked armoured vehicles. At present it is uncertain into which AFV this engine is fitted.

The X150-960 diesel engine appears to be a turbocharged derivative of the older NORINCO 12150 engine. It has the same cylinder bore but a shorter piston stroke of 160 mm instead of 180 mm.

The NORINCO Type 80 MBT is powered by a V-12 diesel developing 750 hp while the more recent Type 85-II has a 730 hp diesel. The Type 85-III has a 1,000 hp diesel which may well be an improved version of the X150-96O covered in this entry.

Specifications:
Property Value
Number of cylinders
12
Cylinder bore (mm)
150
Cylinder stroke (mm)
160
Engine power output (h.p.)
960
Rated speed (r.p.m.)
2200
Maximum torque (Nm)
3600
Fuel consuption (g/h.p.h)
175
Weight (kg)
1600
Length (mm)
1394
Width (mm)
940
Height (mm)
950
