Designation:

PN-T

Info
Manufacturer: Izyum Instrument Making Plant
Product type: Sighting Systems
Name: Guidance Unit

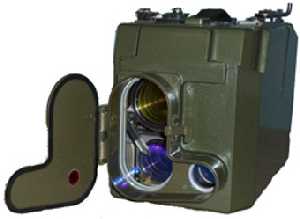

PN-T thermal-vision guidance unit produces a video signal of a target and the missile control field in the laser beam at distances from 50 to 5000 m, and registers thermal radiation of objects and terrain when the unit is installed.

  • Detection range for a 2.5 m×2.5 m tank-type ground target in a daylight and under meteorological visibility distance not less than 25 km under terrain ambient lighting from100 to 104 lux, and min. 0.5, km target to background contrast: not less than 6.5 km (TVK-U); 2 km (TVK-SH)

  • Detection range for a 2.5 m×2.5 m tank-type ground target in a daylight and under meteorological visibility distance not less than 25 kmunder terrain ambient lighting not less than 0.5 lux: not less than 2.5 km (TVK-U); 0.7 km (TVK-SH)

Specifications:
Property Value
Weight (kg)
16
Length (mm)
390
Width (mm)
196
Height (mm)
255
