Designation:

TNPO-170A

Info
Manufacturer: Izyum Instrument Making Plant
Product type: Vision Devices
Name: Vision device

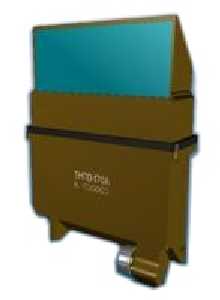

TNPO-170A is a terrain surveillance device with electrical heated protective windows.

Armored vehicles configuration.

  • Angle of the field of view in the horizontal plane: not less than 91 degrees

  • Angle of the field of view in the vertical plane: not less than 23 degrees

  • Upper angle of the field of view in the vertical plane: not less than 12 degrees

  • Bottom angle of the field of view in the vertical plane: not less than 11 degrees

  • Angle of the field of vision in the horizontal plane: not less than 44 degrees

  • Angle of the field of vision in the vertical plane: not less than 5.5 degrees

  • Angle of the binocular field of vision in the horizontal plane: not less than 14 degrees

  • Periscope line-of-sight height: 162±6 mm

  • Visual transmittance factor: not less than 0.44

  • Power supply voltage (DC current): 27 V

  • Power consumption: not more than 117 W

  • Overall dimensions: not more than 163×63×230 mm

  • Weight: not more than 2.9 kg
