Designation:

SCD(M)

Info
Manufacturer: Pearson Engineering Ltd
Product type: Auxiliary Equipment
Name: Mine cleaning system

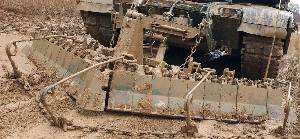

The Surface Clearance Device suitable for Medium Tracked Vehicles is known as the SCD(M) and clears surface laid mines and ordnance from roads, tracks and rough terrain to provide a cleared route or area for follow-on vehicles.


Key Features

  • Clears surface laid mines and ordnance from the full width of the vehicle

  • Vee Blade optimised for clearing routes

  • Angle Blade optimised for clearing areas

  • Proven to operate on a wide range of terrain

  • Robust and compact design to withstand detonations

  • Low maintenance with replaceable blade segments

Operation and Control

A SCD(M) has two operating positions; stowed for cross-country travel and deployed for clearance operations. A hydraulic lift cylinder stows and deploys the SCD(M) blade.

Hydraulic power is provided by an in-built electrohydraulic power system if the SCD(M) is fitted directly to a vehicle, or from an on-board hydraulic system that can be provided as part of a Pearson Engineering Common Interface System.

A SCD(M) is controlled from a Multipurpose Control Unit (MCU) mounted within easy reach of the vehicle driver.

For ease of transportation, the outer sections of a SCD(M) blade can be manually rotated into a transport position, narrowing the SCD(M) to less than the host vehicle width.

Modular

The SCD(M) can be rapidly attached to or detached from the vehicle and interchanged with other Special to Role equipment.

The SCD(M) can be fitted with a Full Width Mine Disrupter System (FWMDS) which is designed to tumble and detonate any tilt mines encountered, increasing overall protection and maximising operational efficiency. An optional Magnetic System Duplicator (MSD) can be fitted to help protect the equipment from the effect of magnetic influence fused mines.

A purpose built Transportation Pallet facilitates both storage and transportation and is capable of fitting into either an ISO container or onto a DROPS pallet.

Vee-Blade

  • Number of blades: 20, 22 or 24

  • Nominal clearance width: 3.8, 4.2 or 4.5m

  • Transport width: 2.8m

  • Weight: 1.2, 1.3 or 1.4 tonnes

  • Clearing speed range: up to 10mph

  • Raise cycle: 11 seconds

  • Lower cycle: 4 seconds

Angle Blade

-Number of blades: 18

  • Nominal clearance width: 3.2m

  • Transport width: 2.9m

  • Weight: 1.2 tonnes

  • Clearing speed range: up to 10mph

  • Raise cycle: 11 seconds

  • Lower cycle: 4 seconds
