Designation:

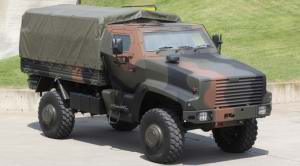

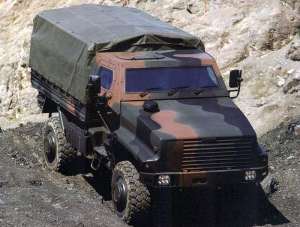

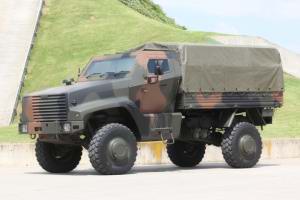

Kaya

 Info
Manufacturer: OTOKAR Otobus Karoseri Sanayi A.S.
Product type: Auxiliary Vehicles
Name: Truck

Engine

  • Model: OM 924 LA

  • Type: 4 cyl Turbo Int 4800 cc

  • Power (hp): 218 hp @ 2200 rpm

  • Torque: (Nm): 810 Nm @ 1200 - 1600 rpm

Gear box and transfer case

  • Model: UG-100

  • Type: tiptronic, electro pneumatic, 8 forward, 6 rear

Axles

  • Front axle capacity: 5500 kg

  • Rear axle capacity: 7100 kg

Brake system

  • Service brake: pneumatic hydraulic dual circuit disk brakes

  • Parking brake + 4 wheel lock: spring brake system acting on the rear wheel brake discs

  • Engine brake: 2-stage, actuated pneumaticaly by multiple function lever at the steering column with exhaust pipe

Wheel and tyre

  • Tyre: 365/80 R 20 XZL

  • Wheel type: 11.0 x 20 SDC

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Crew
2
Length (mm)
6110
Width (mm)
2310
Height (mm)
2920
Weight (kg)
12500
Ground clearance (mm)
650
Max. road speed (km/h)
100
Max. road range (km)
800

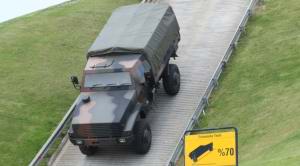

Gradient (%)
60
Side slope (%)
30
Vertical obstacle (mm)
480
Fording depth (mm)
1200
Engine power output (h.p.)
218


Has folowing part:
Total Amount
OM 924LA (Diesel engine)
1
