Designation:

4RL 60 M93A1 Obad

Info
Manufacturer: Agencija Alan d.o.o.
Product type: Armoured Vehicles
Name: Self-propelled rocket launcher

RH ALAN has developed and manufactured a quantity of man-portable 4-round 60 mm calibre rocket launcher.

Description

The launcher has four 60 mm rocket launcher barrels in a rectangular formation and is disassembled into two single-man loads for carriage. It weighs 49 kg in total. The crew is two to three with the 60 mm unguided HE rocket having a maximum range of 7,200 m. No other details are known at present. It should be noted that RH ALAN is a marketing organisation. The actual rockets and launcher are made by a number of Croatian contractors.

Variant

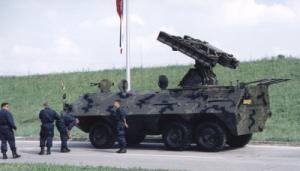

The RH ALAN LOV-IZV reconnaissance vehicle version of the standard Torpedo LOV-OP 4 × 4 APC is equipped with a pedestal rocket launcher mount to the rear of its turret. The pedestal is equipped with a four-round M92A1 launcher assembly on either side.

Production of the LOV family of 4 × 4 light armoured vehicle was undertaken in Croatia. Production has been completed and there are no known exports.

Marketing of the LOV has ceased.

Specifications:
Property Value
Main weapon caliber (mm)
60
Number of rocket lunchers
8
