Designation:

VP10

Info
Manufacturer: NORINCO - China North Industries Group Corporation - CNGC
Product type: Armoured Vehicles

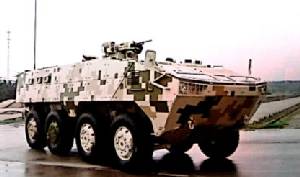

Name: Wheeled armoured personnel carrier

The VP10 armoured vehicle is optimum in performance and complete in functional equipment. It is provided with modular functional components which enable user to select functions on the menu. VP10 8x8 wheeled armoured vehicle features light weight, compact structure, high-level protection, large bearing capacity, and good tactical and strategic mobility as well. Adopting mature techniques and components to a great extent, this armoured vehicle is highly reliable and easy to maintain. An armoured vehicle variants family of VP10 has been developed.

Features

  • All wheel drive offers good tactical and strategic mobility

  • Fully amphibious capability

  • Light weight, compact structure and great bearing capability

  • Modular design provides selectable-functions menu for user

  • Basic type of a wide spectrum of 8x8 wheeled armoured variants

  • Various armaments, including 30mm cannon remote weapon station, are available

Specifications:
Property Value
Number of wheels
8
Number of drive wheels
8
Crew
2
Troops
12
Weight (kg)
12500
Length (mm)
6900
Width (mm)
2700
Height (mm)
2100
Ground clearance (mm)
410
Max. road speed (km/h)
105
Max. water speed (km/h)
8
Max. road range (km)
800
Power-to-weight ratio (h.p./t)
29
Gradient (%)
60
Side slope (%)
40
Vertical obstacle (mm)
480
Trench (mm)
1800
Main weapon caliber (mm)
30
Auxiliary gun calibre (mm)
7.62
Engine power output (h.p.)
362
