Designation:

VN12

Info
Manufacturer: NORINCO - China North Industries Group Corporation - CNGC
Product type: Armoured Vehicles
Name: Infantry fighting vehicle

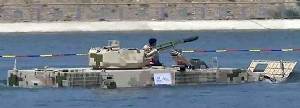

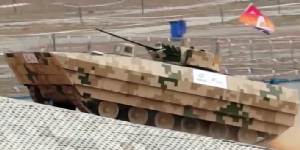

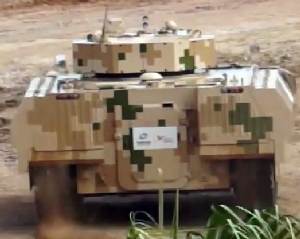

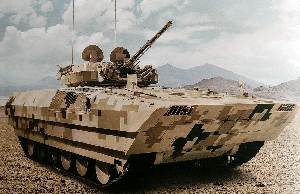

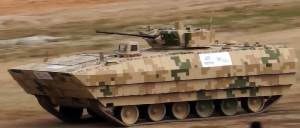

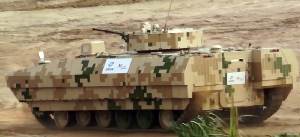

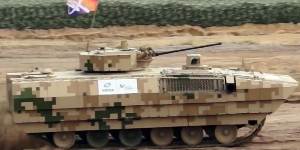

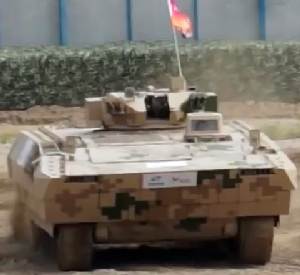

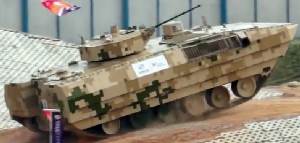

The VN 12 tracked infantry fighting vehicle is a newly developed heavy-type IFV by NORINCO based on rich experiences of armoured vehicle development and manufacture. By integrating high mobility powerful armament, reinforced armour protection and sophisticated information warfare system, VN 12 completely fulfills the requirements in future warfare.

As a kind of infantry fighting vehicle, VN 12 is capable of cooperating with main battle tanks or completing missions independently. Besides a crew of three, VN12 can also carry seven fully equipped soldiers into battle field and provide fire cover. Due to comprehensive fire power of 30 mm cannon and ATGMs, the VN 12 IFV is a formidable weapon system designed to provide fire support, destroy enemy tanks, light armored vehicles and even defend against armored helicopters. All of these features and advantages endow VN 12 with significant value in the battle of regional-conflicts, local wars, as well as in anti-terrorism and peacekeeping operations.

Features

  • Outstanding long distance mobility and terrain adaptability

  • With awesome fire power of 30mm cannon, HJ-73D ATGM, VN12 can defeat ÌÂÒ and IFV in 2800m, and suppress bunker and effective strength in 3000m

  • Fitted with different composite armour, STANAG 4569 III, IV and V levels of ballistic protection are available

  • Sophisticated information system connected by double CAN bus to achieve integrative command & control, and cooperative engagement capability

  • Variants include APC, 105mm tank destroyer, command vehicle, etc.

Specifications:
Property Value
Crew
3
Troops
7
Weight (kg)
23000
Length (mm)
7500
Width (mm)
3300
Height (mm)
2950
Max. road speed (km/h)
70
Engine power output (h.p.)
600
Main weapon caliber (mm)
30
Auxiliary gun calibre (mm)
7.62
