Designation:

T-90M Propyv-3

Info
Manufacturer: JSC Research and production corporation UralVagonZavod
Product type: Armoured Vehicles
Name: Modernization of the vehicle

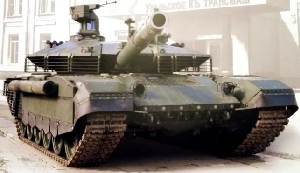

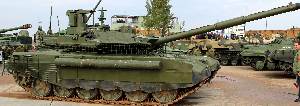

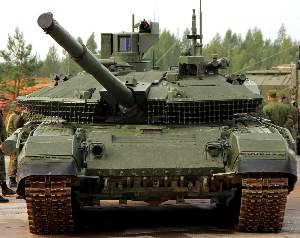

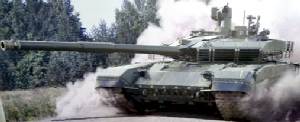

T-90M is a variant of a deep modernization of the T-90 main battle tank. Mainly it is similar to the T-90MS (export version), but it has differences related to the requirements of the Russian army for which it is intended.

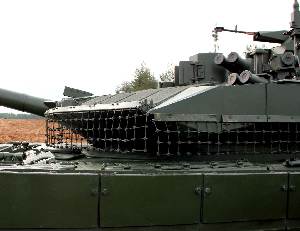

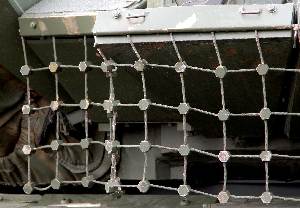

To protect of the crew, the vehicle is equipped with anti-cumulative bar armour, Afghanit Active Protection System and Malachite ERA. In addition, it has a 2A82-1M modernized 125-mm smooth-bore gun, similar to the T-14 Armata MBT, featuring increased accuracy, rate of fire and increased resource to 900 shots, as well as a new Sosna-U Fire Control System with a thermal imager, a laser rangefinder and a target tracking automaton.

In August 2017, a speaker of Uralvagonzavod said that Russian Ministry of Defense awarded a contract for upgrading T-90 tanks to the T-90M level. It is assumed that the totally will be upgraded 400 MBTs, which are in service with the Russian army.

For the first time, the tank was demonstrated on September 9, 2017 near Luga (Leningrad region) on the territory of the 33rd Combined-Arms Test Site during official events in honour of the Tankman Day.

Specifications:
Property Value
Weight (kg)
46500
Crew
3
Length (mm)
9530
Width (mm)
3780
Height (mm)
2230
Max. road speed (km/h)
60
Max. road range (km)
550
Main weapon caliber (mm)
125
AA gun caliber (mm)
12.7
Auxiliary gun calibre (mm)
7.62
Ammunition of the main gun
43
Ammunition of AA gun
300
Ammunition of the auxiliary gun
1250
Engine power output (h.p.)
1000


Has folowing part:
Total Amount
V-92S2 (Diesel engine)
1
