| Designation: |
CM-90 |
 |
| Manufactured by: |
|
|
| Type: |
|
|
| Name: |
|
|
|
|
| |

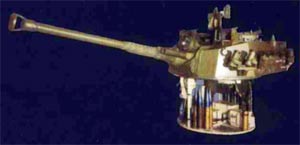

The two man 90 mm turret has a commander/loader on the left and the gunner on the right. The turret is fabricated from steel armour plate. The main armament is the Cockerill 90 mm gun. A coaxial 7.62 mm MG is fitted to the right of the main armament. The turret is electrically powered in traverse and elevation. Elevation is from -10° to +30°. Both gunner and commander can operate the turret but the commander has override. The gunner also has manual traverse and elevation controls. The standard turret has a gunners day sight. Sights with both day and night channels and a laser rangefinder are available as optional extras for both the gunner and the commander.
|
Specifications |
|
Property |
Value |
| Main weapon caliber (mm) |
90 |
| Crew |
2 |
| Auxiliary gun calibre (mm) |
7.62 |
| Elevation (degree) |
30 |
| Depression (degree) |
-10 |
|
|
|
|
| |
|
|
| |
