Designation:

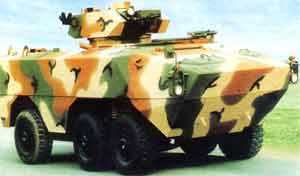

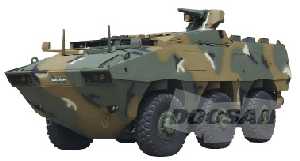

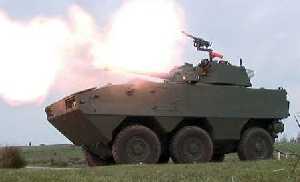

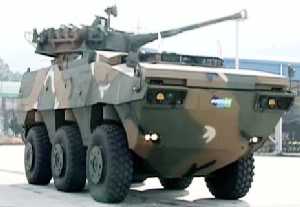

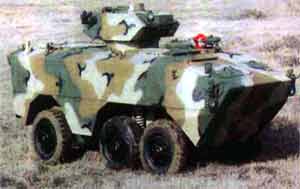

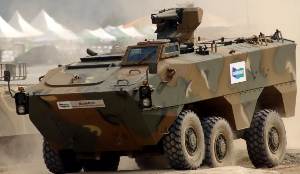

Black Fox AWV

Info
Manufactured by: Doosan Infracore Co. LTD - DI
Type: Armoured Vehicles
Name: Wheeled armoured personnel carrier



Under the changing circumstance due to growing reconciliation mood in Korea, the significance to the guard and defense of national core facilities, such as air-force bas airports, harbors and atomic power plants, etc is building up.
6x6 wheeled vehicle is much more cost-effective in maintenance than existing tracked vehicle, because parts of vehicle are considerably common to the commercial ones.
System Features

  • Advanced Mobility and Maneuverability
  • Enhanced Night Combat Capability due to Vehicle Stealth Technology
  • Minimized Crew Fatigue due to Human Engineering Concept Design
  • Modular Design to Suit Various Battlefield Circumstances
  • Suitable for Street Fighting and Anti-Terrorism Operation
  • Rapid Maintenance and Low Cost
  • Versatile Optional Equipment

Specifications
Property
Value
Number of drive wheels
6
Number of wheels
6
Main weapon caliber (mm)
40
Auxiliary gun calibre (mm)
12.7
Crew
3
Troops
9
Max. road speed (km/h)
100
Max. road range (km)
640
Engine power output (h.p.)
380
Number of forward gears
7
Number of reverse gears
1
Gradient (%)
60
Side slope (%)
30
Vertical obstance (mm)
500
Trench (mm)
1200
Fording depth (mm)
1200
Turning circle radius (mm)
8500
Ground clearance (mm)
420
Weight (kg)
16000


Has folowing part:
Part
Amount
DT 40/50 (Turret)
1


Black Fox AWV
Black Fox AWV
Black Fox AWV
