Designation:

9M133-1 Kornet-E AT-14

Info
Manufacturer: KBP Instrument Design Bureau
Product type: Weapons & Weapon Systems
Name: Anti-tank guided missile launcher

Engagement of existing and future combat tanks protected by explosive reactive armor, fortifications (pillboxes, ferroconcrete bunkers), soft-skinned and light armored targets, hovering helicopters.

Components:

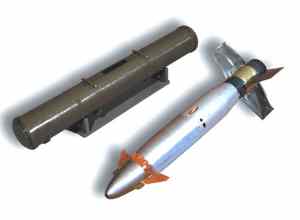

  • guided missiles with tandem HEAT and fuel-air explosive warheads

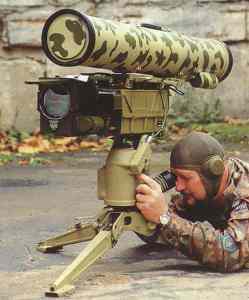

  • launchers: portable and four-missile version installed on light carriers

  • thermal sight

  • maintenance facilities

  • training aids

Firing Complex

When designing the third-generation transportable/portable ATGM system of long range, particular attention has been taken to combat operation in adverse weather as well as in active and passive optical countermeasures environment.

This demand must be met through the rational choice of the control system which would allow the operators to not only see various targets in any conditions of operation but also ensure high jamming immunity.

A high level of system's jamming immunity can be achieved through the use of the TV orientation of a missile within a laser beam by means of its onboard laser receiver directed to the firing system.

Advantages and application features:

  • it is a multipurpose missile which can engage any targets at stand-off ranges

  • it can be fired from prone, kneeling, foxhole standing position either organized or hastily organized positions

  • day/night engagement of any targets

  • the laser beam encoding makes it possible to engage two close targets from two launchers by simultaneous cross and parallel firing

  • it provides full protection against the radiation produced by optical jamming stations

  • it is possible to install this system on the variety of wheeled and tracked carriers

  • simultaneous firing by two missiles from one automated launcher at one target increases the hit probability and provides jamming immunity

  • a laser-beam riding missile allows to fire on the move if the line of sight is stable

  • guided missiles do not require maintenance in service and at storage

Specifications:
Property Value
Firing range (m)
5500
Weight (kg)
37
Firing range (m)
5500
Main weapon caliber (mm)
152

Included in:
Product Amount
BMP-2M (Modernization of the vehicle)
1
Kliver (Weapon station)
1
MA3 (Weapon station)
1
Predator (Turret)
4
Scorpion (Modernization of the vehicle)
1

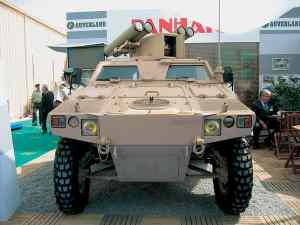

V.B.L./Kornet (Wheeled armoured personnel carrier)
1


9M133-1 Kornet-E AT-14 quantities:
Country Qnt
GREECE GREECE
196
SYRIA SYRIA
50
Qnt:
246
