Designation:

MAP

Info
Manufacturer: King Abdullah II Design and Development Bureau (KADDB)
Product type: Armoured Vehicles
Name: Tracked armoured personnel carrier

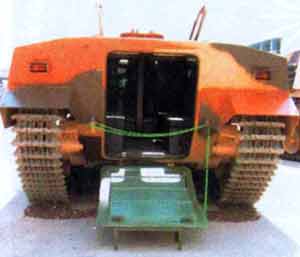

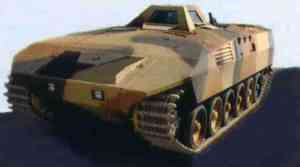

MAP Closed Version CDM:

  • Armoured Personnel Carrier (APC)

  • Command Vehicle

  • Tracked Ambulance

  • Communications Vehicle

  • Forward Observation Vehicle

  • Armoured Workshop Vehicle

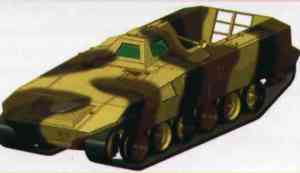

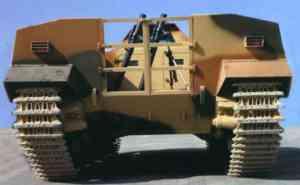

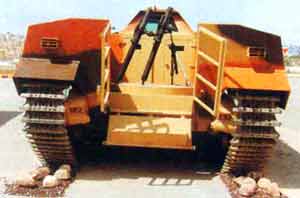

MAP Open Version CDM:

  • Mortar Carrier

  • Spare Powerpack Carrier

  • Ammunition Carrier

  • Fuel Tanker

  • General Purpose Load Vehicle

High Mobility and Payload

  • MBT type tracks and Powerpack ensures high degree of cross country mobility

  • High payload (8 metric tons) in a compact, highly mobile vehicle

  • Versatile payload configurations

Mass and Capacity:

  • Vehicle (empty): 31,000 kg (est)

  • Vehicle (loaded): 39,000 kg (est)

  • Fuel: 600 litres (est)

Mechanical:

  • Engine: Teledyne 750 hp AVDS 1790 V12 Turbocharged Diesel Engine

  • Transmission: Allison CD850-6 A, 2-speed Automatic Transmission, and one speed reverse

  • Suspension: Hydro-pneumatic, swing-arm suspension

  • Final Drive: Original Tariq MBT, modified to reverse drive

  • Track: Dry-pin type original Tariq MBT track

Electrical:

  • Voltage: 24V DC

  • System: Basic new system, similar to Ratel IFV

Performance:

  • Power / mass ratio: 18 kW /1 (24 hp /1) (empty)

  • Power / mass ratio: 14 kW /1 (19 hp /1) (loaded)

  • Cruising range: 200 km

  • Crew: 11 for the closed version

  • 3 for the opened version

Specifications:
Property Value
Payload (kg)
8000
Engine power output (h.p.)
750
Crew
2
Troops
10
Length (mm)
7800
Width (mm)
3600
Track (mm)
2660
Height to hull top (mm)
2000
Ground clearance (mm)
450
Weight (kg)
31000
Max. road speed (km/h)
60
Gradient (%)
60
Side slope (%)
35
Power-to-weight ratio (h.p./t)
24
Max. road range (km)
200


Has folowing part:
Total Amount
AVDS 1790-2D (Diesel engine)
1
CD-850-6A (Transmission)
1
