Designation:

TUR 2

Info
Manufacturer: AMZ-Kutno Sp. z.o.o.
Product type: Armoured Vehicles
Name: Wheeled armoured personnel carrier

ENGINE

4.5 I, 4 cylinder Diesel, EURO 3 (4) compliant 220 hp. Maximum torque 800 Nm.

GEARBOX

Allison 2500, automatic with 6 forward and 1 reverse gear.

TRANSFER BOX (AXELTECH T232)

Separated from the gearbox, permanent 4x4. Ratios : normal speed range (HS): 1/1, reduced speed range (LS): 1/2.5. Pneumatic differential lock.

SUSPENSION

Front - pushing arms with coil springs. Telescopic shock absorbers. Stabilizer bar.

Rear - Trailing arms with coil springs.

Telescopic shock absorbers. Stabilizer bar.

WHEELS

Bead Lock, Run Flats, CTIS, aluminum wheel rims, 335/80 R20 tyres.

FUEL TANK

Total capacity 200 I.

ELECTRIC SYSTEM

24 Volt, generation 200 A, Batteries 2x12 V, 125 Ah. BRAKING SYSTEM

The service and secondary brake - compressed air over hydraulic actuating 4 disc brakes on the axles.

Parking brake - air/spring actuator to a transmission mounted disc brake. A slope brake.

PERFORMANCE

Approach angle 43 degrees, departure angle 40 degrees. Turning radius 7,5 m, slope angle of 45°, side slope angle of 35c Fording 1100 mm with preparation 1500mm. Max road speed at flat surface: 120 km/h.

VEHICLE ARMORING

STANAG 4569 level 2 (option - STANAG 4569 level 3).

MINE PROTECTION LEVEL

STANAG 4569 level 1 (option - STANAG 4569 level 2 A, B).

CONFIGURATION

5 crew members

OPTION:

  • À/Ñ system

  • Filter ventilation with active carbon filter

  • Fire fighting systems: engine, cabin, wheels

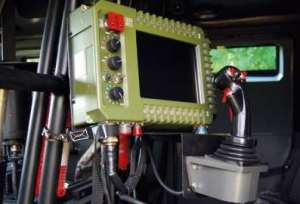

  • Manual or automatic turret remote weapon stations

  • Run flat tire system

  • Smoke grenades launchers

  • Knife for wire traps mounted above the windscreen

  • GPS / radio systems / intercom

  • Possibility of vehicle adaptation to special objectives


Specifications:
Property Value
Weight (kg)
9400
Max. road speed (km/h)
120
Max. road range (km)
800
Engine cylinder volume (l)
2.2
Engine power output (h.p.)
220
Crew
5
Number of drive wheels
4
Number of wheels
4
Length (mm)
5814
Width (mm)
2300
Height (mm)
2300
Wheelbase (mm)
3780
Ground clearance (mm)
310


Has folowing part:
Total Amount

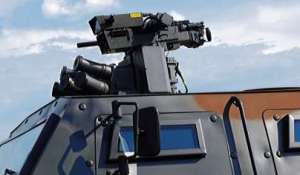

ZSMU-70 (Remote controlled weapon station)
1
