Designation:

ZBD-09

Info
Manufacturer: NORINCO - China North Industries Group Corporation - CNGC
Product type: Armoured Vehicles
Name: Wheeled armoured personnel carrier

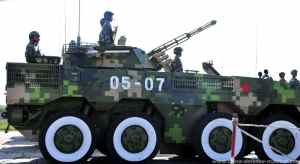

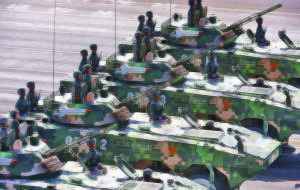

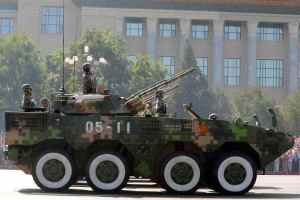

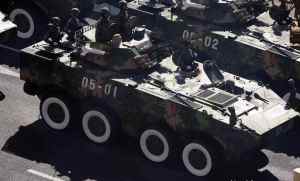

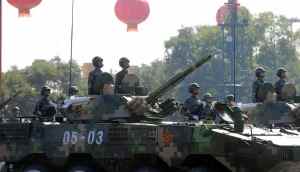

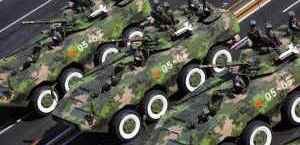

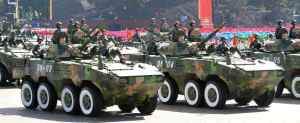

The ZBD-09 is a new wheeled infantry armoured fighting vehicle designed and manufactured by the Chinese Defense Company NORINCO China North Industries Corp. The ZBD-09 was presented for the first during the military parade in Beijing for the 60th anniversary of the Chinese army (PLA), the 01 October 2009. The ZBD-09 was based to the chassis of the VN1 8x8 wheeled chassis.

Armament

The ZBD-09 is fitted with a two man turret, armed with an Ukrainian modified 30 mm automatic gun. A 7.62 mm coaxial machine gun is fitted to the left side of the 30 mm gun. To each side of the turret is mounted a launcher system, for the wire-guided Hong Jian-73C anti-tank guided missiles. Two lines of three smoke-grenades discharger are mounted to each side of the main gun.

Protection

The hull and the turret of the ZBD-09 is made of high hardness armor steel, which provide a protection against 12.7mm armour-piercing incendiary (API) strikes frontally at 100m, 7.62mm API on the sides at 100m and 7.62mm ball at the rear. The ZBD-09 can also be fitted with add-on armour package enables the vehicle to survive 25 mm API frontally at 1,000m and 12.7mm API on the sides at 100m.

Propulsion

According to Chinese sources the ZBD-09 is motorised with water-cooled Diesel engine DEUTZ BF6M1015 CP coupled to a mechanical transmission with the synchronizer affording superior performance in tropical zone, desert and plateau. The ZBD-09 adopted an 8x8 all-wheel driving configuration, independent suspension system and axles with differential lock enabling the ZBD-09 to get excellent cross-country performance. Its power to weight ratio of 16.5 kW/t enables the 8 x 8 version to climb a 30° slope, cross a 1.8m trench and climb over a 0.55 m vertical obstacle.

Accessories

The ZBD-09 is fully amphibious, it can swim at a speed of up to 8 km/h. It is propelled in water thanks to two propellers fitted at the rear of the hull. The ZBD-09 is equipped with a collective NBC protection system, automatic fire extinguishing system enhancing survivability of the vehicle. The ZBD-09 is also equipped with a central tyre inflation system which can inflate or deflate the tyres and test the tyre pressure automatically. In option, the ZBD-09 can be equipped with a powerful air conditionning system, a GPS (Global positioning system) and a winch.

Specifications:
Property Value
Number of wheels
8
Number of drive wheels
8
Max. road speed (km/h)
100
Engine power output (h.p.)
390
Max. road range (km)
1000
Max. water speed (km/h)
8
Crew
3
Troops
7
Weight (kg)
21000
Length (mm)
8000
Width (mm)
3000
Height (mm)
2100
