Designation:

Adunok-M

Info
Manufacturer: SFTUE Belspetsvneshtechnika - BSVT
Product type: Auxiliary Vehicles
Name: Robot, Unmanned Vehicle

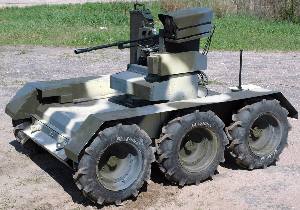

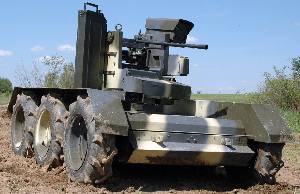

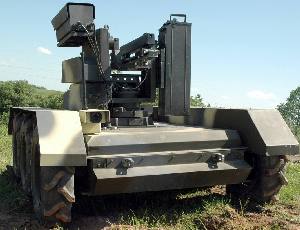

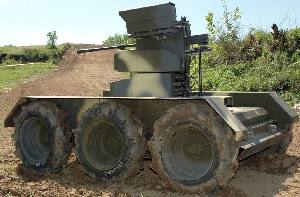

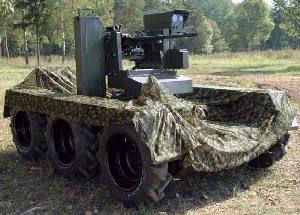

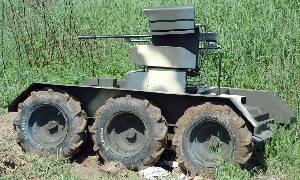

Adunok-M - automated remote-controlled fire complex on a unmanned ground platform is intended for patrolling the terrain and for remote accomplishment of various tasks, including reconnaissance missions.

The main weapon is a Kalashnikov 7.62-mm machine gun. Also on this UGV can be installed 12.7-mm Utes or Kord machine gun, or 30-mm AGS-17 automated grenade launcher.

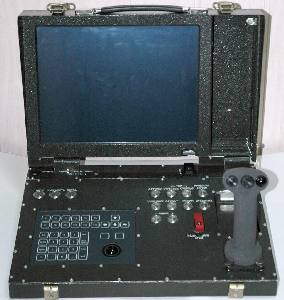

The complex can hit light armored vehicles and infantry at a distance up to 800 meters. This attack robot is controlled by a trackball and joystick. The first is necessary for a sharp change in the course of movement of the UGV, the second allows to more accurately adjust the route.

Adunok-M can travel 10 kilometers without recharging the battery at a speed of 20 kilometers per hour. This five hundred kilogram vehicle is free to move around the sand and snow.

  • Basic set: rotary platform, computer unit, communication line (Ethernet cable)

  • Type of weapon/ammunition - 7.62-mm Kalashnikov machine gun (PKT)/500 rounds, NSVT (Utes) or Kord machine gun/100 rounds, AG-17A automatic grenade launcher/29 shots

  • Sites: two video cameras (wide and narrow field of view), thermal imager, laser range finder

  • Target detection distance: 2000 m

  • Number of stored and hit targets in automated mode: 10

  • Sector of observation and defeat: horizontally - 360°, vertically - from -20° to +60° (for AG-17A - from -10° to +60°)

  • Speed ​​of the swing platform: 30°/s

  • Maximal operator removal from weapons: 300 m

  • Power supply voltage: from 22 V to 30 V

  • Power: rotary platform - 800 W, computer unit - 170 W

  • The working temperature is from -40°Ñ to + 60°Ñ



Specifications:
Property Value
Power requirement (W)
800
Slew rates in Azimuth (deg/sec)
60
Traverse arc (degree)
360
Depression (degree)
-20
Elevation (degree)
60
Main weapon caliber (mm)
12.7
Max. road speed (km/h)
20
Max. road range (km)
10
Weight (kg)
500
Number of wheels
6
Number of drive wheels
6


Has folowing part:
Total Amount
Adunok (Remote controlled weapon station)
1
AGS-17 PLAMYA (Automatic grenade launcher)
1
Panorama (All-round vision device)
1
