Designation:

9S816M

Info
Manufacturer: Izyum Instrument Making Plant
Product type: Sighting Systems
Name: Guidance Unit

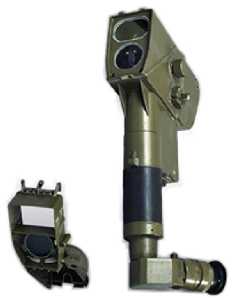

9S816 aiming device provides terrain surveillance, target selection and subsequent tracking of its movements by the operator.

After missile launch, it directs an anti-tank guided missile through wires using semi-automatic control system.

9S816 aiming device is used as a part of the METIS anti-tank missile system.

  • Aimer zoom: 6 times

  • Diopter guidance limits: from -4 to +4 diopters

  • Angle of view of the aimer: 6

  • Periscope line-of-sight height: 108 mm

  • Field of view of the direction finding channel I:

  • Field of view of the direction finding channel I with constant aperture, vertical up: 324′

  • Field of view of the direction finding channel I with constant aperture, vertical down: 148′

  • Field of view of the direction finding channel I with constant aperture, horizontal: 4.48

  • Field of view of the direction finding channel I with given aperture: 2

  • Field of view of the direction finding channel II with constant aperture: from 50′ to 58′

  • Field of view of the direction finding channel II with given aperture: from 14′ to 16′

  • Target search and detection distance: 3 km

  • Anti-tank missile control distance: 2 km

  • Weight: 3.3 kg

  • Operating conditions: from -50 to +50
