Designation:

Ejder Yalcin

Info
Manufacturer: NUROL Mashinery and Industry Co Inc
Product type: Armoured Vehicles
Name: Wheeled armoured personnel carrier

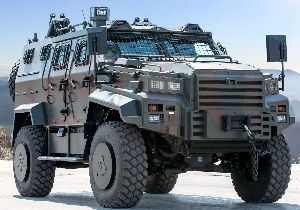

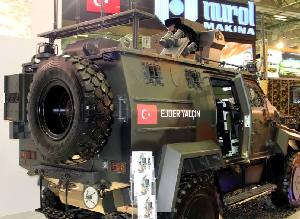

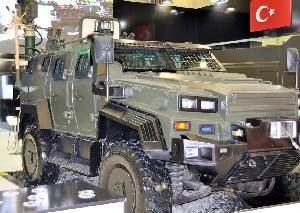

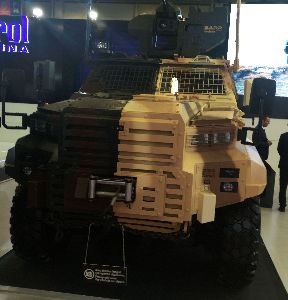

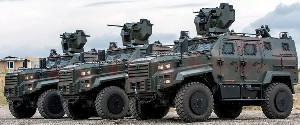

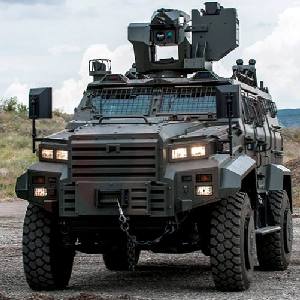

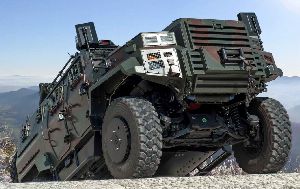

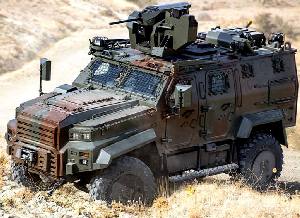

EJDER YALÇIN 4x4 Armored Combat Vehicle a unique platform that has high protection and mobility, is developed to meet the operational requirements of military units and security forces in every region including rural and urban areas.

By its unique design and high payload capacity, different payloads can be integrated; therefore EJDER YALÇIN 4x4 can be customized for various applications. With its powerful diesel engine, high torque capability and fully independent suspension system, the vehicle offers superior off-road performance. During the development of EJDER YALÇIN 4x4, in addition to the superior protection features, user's operational & ergonomic requirements were also considered and an ideal platform was created for the personnel to operate more efficiently and more secure in the field.

Multi-Mission Family of Vehicles

EJDER YALÇIN 4x4 has proven itself in the operational areas and it offers special solutions to the different operational requirements of users with customizations such as:

  • Border Surveillance and Security Vehicle

  • Air Defence Vehicle

  • Reconnaissance Vehicle

  • Command and Control Vehicle

  • Mine/IED Detection-Clearence Vehicle

  • Combat Vehicle

  • Personnel Carrier

  • CBRN Surveillance Vehicle

  • Tactical Missile Carriage/Launch System

  • Armored Ambulance

SURVIVABILITY FEATURES

  • Mine Protection level up to 4a 3b according to Stanag 4569

  • Superior ballistic protection

  • Superior protection against lateral blasts

  • Superior protection against Improvised

  • Explosive Devices (IED)

  • Emergency exit hatches

  • Protection grills on windshield and sight glasses

STRATEGICAL FEATURES

  • Airway-Seaway-Railway transportation

  • Ability to use different types of fuel (F34 and F54 and other)

  • Adapting to Joint/Combined & Multinational Operations

  • Easy adaptation of different weapon systems

  • Ability to operate between the degrees -32°C - +55°C

  • Multi-mission family of vehicles

SUPERIOR LAND FEATURES

  • Double wishbone fully independent suspension system for all wheels

  • Permanent 4WD

  • Latitudinal and longitudinal differential locks

  • Effective parking break system at full capacity and on high slopes

  • ABS brake system

  • Large/Wide Off-Road Tires

SUPERIOR PAYLOAD CAPACITY AND WIDE INTERNAL VOLUME

  • Payload capacity up to 4 tons depending on the configuration of the vehicle

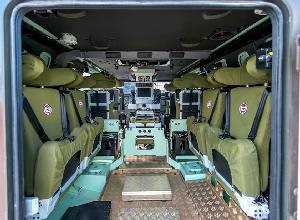

  • Different seating configurations able to carry up to 11 personnel according to the operational needs

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Weight (kg)
14000
Crew
2
Troops
9
Payload (kg)
4000
Max. road speed (km/h)
120
Max. road range (km)
700
Engine power output (h.p.)
375
Turning circle radius (mm)
7750
Fording depth (mm)
1100
Vertical obstacle (mm)
500
Trench (mm)
1100
Gradient (%)
60
Side slope (%)
30
Length (mm)
5625
Width (mm)
2500
Ground clearance (mm)
450
Height to hull top (mm)
2585
Wheelbase (mm)
3250



Ejder Yalcin quantities:
Country Qnt
QATAR QATAR
40
SENEGAL SENEGAL
25
TUNISIA TUNISIA
70
TURKEY TURKEY
61
TURKMENISTAN TURKMENISTAN
5
UZBEKISTAN UZBEKISTAN
24
Qnt:
225

Last Contracts:
Qnt Customer Value Add Date
(Close Date)
Unit cost
24
UZBEKISTAN

Oct 2017
(Aug 2019)

70
TUNISIA

Dec 2016
(Dec 2018)

Average Unit Cost:

All contracts...
