Designation:

VL1

Info
Manufacturer: NORINCO - China North Industries Group Corporation - CNGC
Product type: Armoured Vehicles
Name: Reconnaissance Vehicle

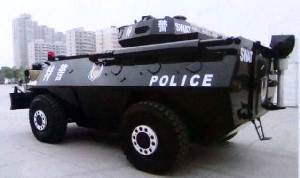

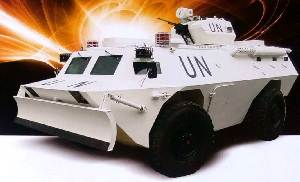

The VL1 4x4 wheeled armoured vehicle features excellent mobility including cross-country mobility, good armour protection and sufficient firepower. Fitted with riot control equipment such as an obstacle-breaching blade and highlight lamps, etc., it can be used to quickly transport personnel and materials, to handle emergencies, and to keep guard over important departments, facilities and areas. It is now in service with the peacekeeping forces of the United Nations.

  • VL1 has a 4x4 all-wheel drive, a high power engine and an independent suspension. It features strong power and superior cross-country mobility

  • The hull and turret are fitted with all-welded steel armour, providing good protection for the crew

  • The vehicle is fitted with a hydraulic obstacle breaching dozer blade with the dozing capability of 1 ton

  • Other riot control equipment, such as high voice dispel device and a tear bomb launcher, can be optionally installed on the vehicle

  • The vehicle hull adopts a climbing-proof design. All exposed pipelines offer scissor-proof and cutting-proof capabilities

Specifications:
Property Value
Number of drive wheels
4
Number of wheels
4
Crew
2
Troops
8
Engine power output (h.p.)
290
Length (mm)
6710
Width (mm)
2860
Height (mm)
210
Max. road speed (km/h)
95
Measuring range (m)
800
Fording depth (mm)
1200
Trench (mm)
800
Gradient (%)
60
Side slope (%)
40
Vertical obstacle (mm)
500
Main weapon caliber (mm)
7.62
