Designation:

MA8

Info
Manufacturer: Muromteplovoz OJSC
Product type: Turrets
Name: Weapon station

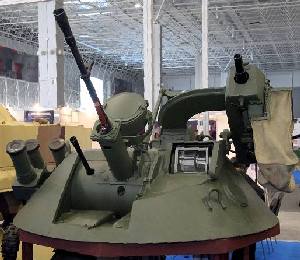

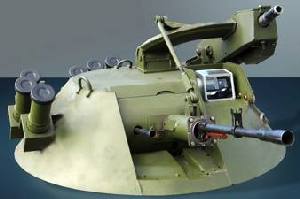

Turret Mount MA8 is designated to fight hostile manpower and soft-skin materiel as well as low aerial targets.

Advantages:

  • high accuracy and compactness of MG KORD fire with effectiveness not lower than that of KPVT

  • possibility of using MG KORD off the vehicle by the crew in case of leaving the vehicle

  • gunner supplementary protection while loading the weapon

  • entire ammunition load is stored in the armoured space of the vehicle

  • possibility of conducting fire in twilight (when complete with sight TKN-4GA)

  • conducting fire with grenade launcher AG-17 against open and sheltered targets

Turret mount MA8 incorporates:

  • 12,7-mm Machine gun «KORD»

  • 7,62-mm Machine gun PKTM

  • 30-mm grenade launcher AG-17

  • 902V System

  • TKN-4GA Combined day/night

Turret mount armouring diagram ensures protection class 5.

Specifications:
Property Value
Crew
1
Main weapon caliber (mm)
12.7
Auxiliary gun calibre (mm)
7.62
Grenade launcher calibre (mm)
30
Depression (degree)
-5
Elevation (degree)
70
Traverse arc (degree)
360


Has folowing part:
Total Amount
AG-17 (Automatic grenade launcher)
1
KORD (Machine gun)
1
PKMS (Machine gun)
1
