Designation:

MA9

Info
Manufacturer: Muromteplovoz OJSC
Product type: Turrets
Name: Weapon station

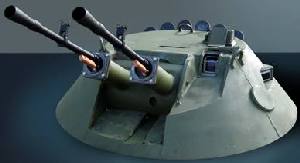

Turret Mount MA9 is designated to fight hostile manpower and soft-skin materiel as well as low aerial targets.

Advantages:

  • high accuracy and compactness of MG KORD fire with effectiveness not lower than that of KPVT

  • possibility of using MG KORD off the vehicle by the crew in case of leaving the vehicle

  • gunner supplementary protection while loading the weapon

  • entire ammunition load is stored in the armoured space of the vehicle

  • possibility of conducting fire in twilight (when complete with sight TKN-4GA)

Turret mount MA9 incorporates:

  • 12,7-mm Machine gun KORD - 2 pcs

  • 902V System

  • 1PZ-7A Day Sight or TKN-4GA Combined Sight

Turret mount armouring diagram ensures protection of class 5.

Specifications:
Property Value
Crew
1
Main weapon caliber (mm)
12.7
Depression (degree)
-5
Elevation (degree)
70
Traverse arc (degree)
360


Has folowing part:
Total Amount
KORD (Machine gun)
2
