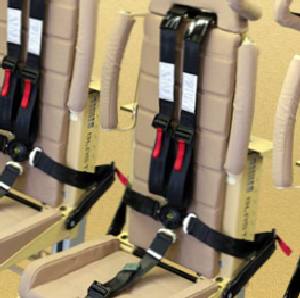

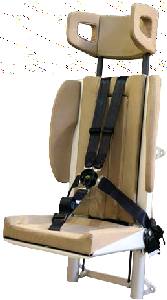

BLASTech Troop

Manufacturer: Jankel Armouring Ltd
Product type: Auxiliary Equipment
Name: Seat

  • Ultra lightweight and low profile design

  • Auto weight adjustability

  • Flexible mounting (floor / rear / roof)

  • Full functionality (Fore / aft and elevation)

  • 5 point harness as standard

  • Fold-up seat pan

  • Head and shoulder bolsters for side seating support

  • Proven, rugged, consistent and in-service multi axial mitigation system and seat design –military off the shelf solution

  • Strong attachment rails designed and tested against severe blast loads, including lateral loadings

  • Fully certified to road legislation requirements

  • Fold forward seat back option for storage access

  • Mass – from 20kg

System Performance Includes

  • Patented recovery system allows use of a minimum of 200% of stroke under seat for energy absorption

  • Attenuation for primary and secondary loads, each exceeding 9.3 m/s over 5 ms (reported maximum delta-V from MGA test)

  • Certification to US and UK safety requirements (Inc FMVSS 207 / 208 / 210)

  • Seat exceeds material flammability requirements of FMVSS 302

Included in:
Product Amount
AFV 432 (Tracked armoured personnel carrier)
Ocelot LPPV/Foxhound (Mine protected carrier)
SCOUT SV Ajax (Infantry fighting vehicle)
