Designation:

Type 653

Info
Manufacturer: NORINCO - China North Industries Group Corporation - CNGC
Product type: Armoured Vehicles
Name: Repair and recovery vehicle

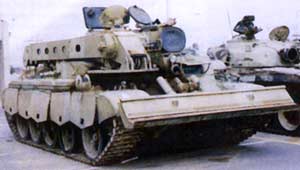

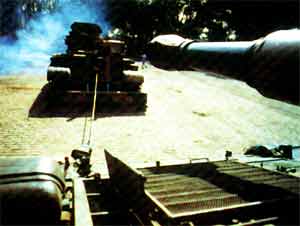

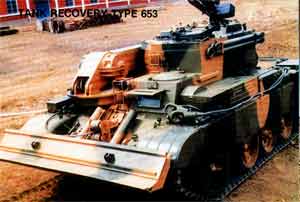

This is based on the chassis of the Type 69 MBT and is designed not only to recover this and other vehicles on the battlefield but also to undertake major repairs such as changing complete power packs, clearing obstacles and preparing fire positions. Standard equipment includes a front-mounted hydraulically operated dozer blade, a hydraulic crane on the right side of the hull, a main winch with a capacity of 70 tonnes, auxiliary winch, tools, towbars and cables. In addition to being used by the Chinese Army, small quantities of these have been sold to Bangladesh, Iraq, Pakistan and Thailand as part of the Type 69 MBT sale.

Specifications:
Property Value
Weight (kg)
38000
Crew
5
Engine power output (h.p.)
580
Max. road speed (km/h)
50
Max. road range (km)
370
Gradient (%)
60
Side slope (%)
30
Trench (mm)
2600
Vertical obstacle (mm)
700
Fording depth (mm)
1400
Winch hook force (kg)
70000
Length (mm)
7300
Width (mm)
3300
Height (mm)
2340
Length of track on ground (mm)
3845
Ground clearance (mm)
425


Has folowing part:
Total Amount
Type 12150L (Diesel engine)
1
