Designation:

E4

Info
Manufacturer: Rheinmetall Defence
Product type: Turrets
Name: Turret

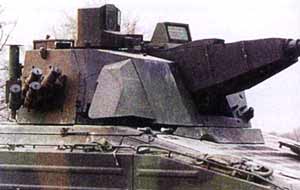

In the E4 turret, a conventional two-man turret for arming medium- and heavyweight infantry vehicles, the commander and gunner are accommodated next to each other. Similar to the E8 version, the E4 turret is equipped with a 30 mm automatic cannon, a stabilized line of sight with day and night vision and a modern fire control system.

Mission:

  • Combating ground targets, incl. armoured infantry fighting vehicles

  • Support of dismounted infantry

  • Combating helicopters

Market:

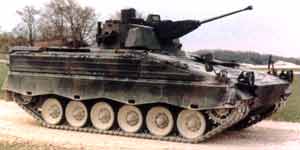

Upgrading potential for existing armoured infantry fighting vehicles, e.g. German AIFV MARDER.

Main features

  • Main weapon Rheinmetall Waffe Munition 30 mm machine cannon

  • 360° surveillance and firing while cruising (stabilised line of sight)

  • Day/night vision, fire control system

  • Emergency mode capability

Specifications:
Property Value
Turret protection, max (mm)
30
Main weapon caliber (mm)
30
Weight (kg)
3500
Elevation (degree)
45
Depression (degree)
-10
Crew
2
Auxiliary gun calibre (mm)
7.62
Ammunition of the main gun
135
Ammunition of the auxiliary gun
400
Thermal imaging camera
1

Included in:
Product Amount
Marder MK 30 (Infantry fighting vehicle)
1

Has folowing part:
Total Amount
FAUST (Commander's sighting system)
1
MK 30-2 (Gun)
1
