Designation:

VBTP-MR Guarani

Info
Manufacturer: IVECO S.p.A., Defence Vehicles Division
Product type: Armoured Vehicles
Name: Wheeled armoured personnel carrier

Developed with Brazilian technology through a joint project between the Army Technology Center and Iveco, part of the Fiat Industrial Group, the Guarani is a six-wheel drive amphibious vehicle that will serve as the basis for a new family of armored multimission vehicles capable of carrying out reconnaissance and fire support missions.

The new vehicle weighs 18 metric tonnes and will replace the Urutu and Cascavel wheeled armoured vehicles developed in the 1970s by the former Engesa. The main feature of the Guarani is its modular design, allowing the incorporation of different turrets, weapons, sensors and communications systems on the same hull.

By its versatility, the project has attracted the interest of neighbouring countries that are also preparing to re-equip their militaries. During the first half of the year, there were preliminary talks with Argentina, which may initially buy 14 vehicles for use in joint peace-keeping missions with Chile.

The new vehicles will be produced at the factory entirely dedicated to the project, within Iveco’s industrial complex at Sete Lagoas (Minas Gerais state). To date, a single prototype has been officially delivered for testing to the Army Evaluation Center. The large-scale production of the Guarani should begin in early 2013.

According to the forecast of the Brazilian Army, seven armored vehicles will be ready by December this year. They are part of a total of a 16-vehicles pilot batch project. The Operational Experimentation Batch should comprise 38 vehicles by July 2013, and the remaining 48 by July 2014.

According to Iveco, production begins with a proportion of local content above 60%. When the plant is operating at full capacity, it will involve a supply chain in Brazil of about 110 direct and 600 indirect suppliers.

In addition to Minister Celso Amorim and the President of Iveco Latin America, Marco Mazzu, the ceremony of signing the contract was also attended by the Army commander, General Enzo Peri, the Chief of Joint Staff of Armed Forces (EMCFA), General Jose Carlos De Nardi, the head of the Department of Science and Technology of the Army, General James Sinclair Mayer, the Italian ambassador in Brazil, Gherardo La Francesca, and representatives of Iveco, as well as civil and military authorities.

Variants

  • VBTP Standard

  • VBCI (with 30mm turret)

  • VBE / CP (command post)

  • VBE / Mort (door-mortar 81mm or 120mm)

  • VBE / CDT (fire control)

  • VBE / Communications / Command and Control

  • VBE / Workshop

  • VBE / Relief

  • VBTE / Ambulance


Specifications:
Property Value
Max. road range (km)
600
Weight (kg)
16700
Number of wheels
6
Number of drive wheels
6
Crew
1
Troops
10
Length (mm)
6900
Height (mm)
2340
Width (mm)
2700
Max. road speed (km/h)
90


Has folowing part:
Total Amount
CURSOR 10 ENT C (Diesel engine)
1
REMAX (Remote controlled weapon station)
1
UT 30 / ORCWS 30 (Remote controlled weapon station)
1
UT 30BR (Remote controlled weapon station)
1

VBTP-MR Guarani quantities:
Country Qnt
BRAZIL BRAZIL
400
LEBANON LEBANON
10
Qnt:
410

Last Contracts:
Qnt Customer Value Add Date
(Close Date)
Unit cost
1580
BRAZIL
$1.760.000.000
Nov 2016
(Nov 2035)
$1,113,924
10
LEBANON
$40.000.000
Dec 2014
(Mar 2017)
$4,000,000
26
BRAZIL
$31.000.000
Dec 2013
(Dec 2014)
$1,192,308
86
BRAZIL
$119.000.000
Aug 2012
(Jul 2014)
$1,383,721
2044
BRAZIL

Jan 2012
(Dec 2030)

Average Unit Cost:
$1,145,711

All contracts...


Related Articles

Iveco Latin America and the Brazilian Army in ˆ2.5 billion Defence Vehicle Supply Contract (22.12.2009)

Iveco Latin America and the Brazilian Army in ˆ2.5 billion Defence Vehicle Supply Contract (22.12.2009)


Share...
Printable Version Send by email rss favorite Facebook Vkontakte Twitter Google+

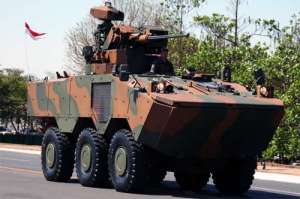

VBTP-MR Guarani

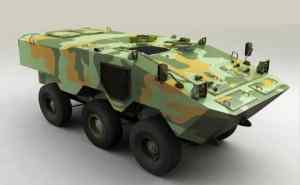

VBTP-MR Guarani
