Designation:

PCZ-45

Info
Manufacturer: NORINCO - China North Industries Group Corporation - CNGC
Product type: Armoured Vehicles
Name: Ammunition resupply vehicle

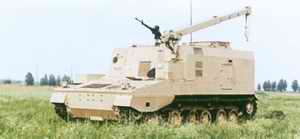

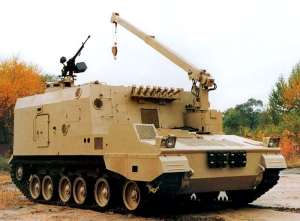

The PCZ45 Ammunition Support Vehicle (ASV) carries 90 155mm projectiles ans associated charges which are fed to the PLZ45 155mm self-propelled gun howitzer (SPGH) via a conveyor belt at the rate of 6 to 8 rounds a minute. Standard equipment includes an auxiliary power unit and a crane for loading pallets of ammunition through the roof.

Specifications:
Property Value
Crew
3
Weight (kg)
33000
Length (mm)
7150
Width (mm)
3330
Height (mm)
3420
Ground clearance (mm)
450
Max. road speed (km/h)
55
Max. road range (km)
450
Gradient (%)
58
Side slope (%)
47
Vertical obstacle (mm)
700
Trench (mm)
2700
Fording depth (mm)
1200
Main weapon caliber (mm)
12.7
Ammunition of the main gun
480
