Designation:

DT-10PM

Info
Manufacturer: JSC Ishimbay Machine-building Company Vityaz
Product type: Armoured Vehicles

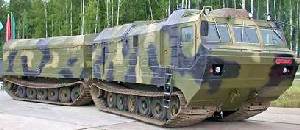

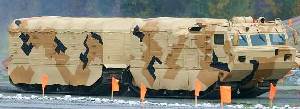

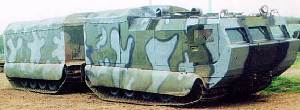

Name: Tracked armoured personnel carrier

DT-10PM is two-section track carrier assures:

  • high passableness on difficult roads (marsh, snow, woodland, and mountainous country) under severe weather climate and conditions (at the temperature from -40 to +45°Ñ

  • getting over water obstacle without special preparation

Specifications:
Property Value
Weight (kg)
27000
Payload (kg)
10000
Crew
5
Engine power output (h.p.)
800
Max. road range (km)
45
Max. water speed (km/h)
6
Gradient (%)
350
Ground pressure (kg/sm2)
0.22
Max. road range (km)
700
Gradient (%)
60
Side slope (%)
30
Length (mm)
14350
Width (mm)
3100
Height (mm)
3295
Trench (mm)
4000
Vertical obstacle (mm)
1500


Has folowing part:
Total Amount
YaMZ-8471.10 (Diesel engine)
1
