Designation:

AB3 Desert Iris

Info
Manufacturer: King Abdullah II Design and Development Bureau (KADDB)
Product type: Auxiliary Vehicles
Name: Patrol Vehicle

Product Description

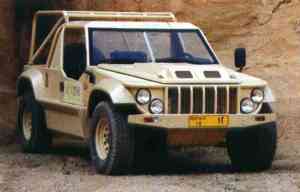

The Desert Iris programme was initiated to meet an operational requirement identified by the Jordan Armed Forces (JAF) for a cost-effective, light weight and affordable utility vehicle. The Desert Iris is an off-road 4x4 non-armoured vehicle with excellent heavy-duty specifications.

Outstanding Off-Road Performance

Designed to achieve excellence in off-road performance and handling.

Accelerated durability testing conducted both at the Gerotek facility and in Jordan has confirmed

the excellent ride quality, handling and durability of the Desert Iris.

The Baseline Desert Iris features a Toyota 2.8 Litre diesel engine, manual gearbox and four-wheel drive.

Multi-Role Applications

The Desert Iris offers a large load area. The standard Desert Iris is capable of carrying up to 4 soldiers in combat order.

The Desert Iris can mount a range of weapons on its purpose-built weapons tray. This unit can be fitted and removed easily and rapidly, enabling the Desert Iris to be re-configured as required by the ground force commander.

Typical Mission Profile

  • Light utility and reconnaissance, including air portable operations

  • 12.7 mm or 7.62 mm machine gun platforms

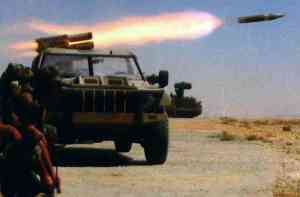

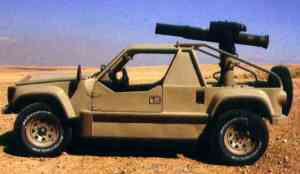

  • TOW launch platform

  • The operational range is 600 km over paved roads and over 400 km off-road

Specifications:
Property Value
Number of drive wheels
4
Number of wheels
4
Weight (kg)
1650
Length (mm)
4250
Width (mm)
1900
Height (mm)
1750
Wheelbase (mm)
2770
Track (mm)
1570
Ground clearance (mm)
350
Turning circle radius (mm)
8000
Engine power output (h.p.)
100
Maximum torque (Nm)
185
Number of forward gears
5
Max. road speed (km/h)
120
Gradient (%)
60
Side slope (%)
40
