Designation:

LMT-105

Info
Manufacturer: DENEL LAND SYSTEMS, DLS
Product type: Turrets
Name: Antitank turret

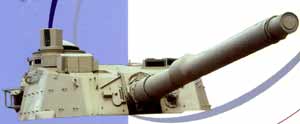

The Light Medium Turret 105 millimetre gun is basically an upgrade on the 76 millimetre gun of the Rooikat Armoured Car currently in service with the South African National Defence Force. Its characteristic features remain unchanged.

Development of the LMT-105 turret was completed in 1996. Designed for installation on a wide variety of tracked and wheeled AFV chassis with platform weights from 12,000 kg such as the BAE Systems Global Combat Systems OMC Rooikat 105, General Dynamics Santa Bárbara/Steyr-Daimler-Puch ASCOD, BAE Systems Global Combat Systems Hägglunds CV90, BAE Systems Global Combat Systems Warrior and the General Dynamics MOWAG Piranha (10 × 10), the 6,500 kg LMT-105 turret can also be used to retrofit older armoured vehicle types such as the M41 light tank.

Specifications:
Property Value
Crew
3
Main weapon caliber (mm)
105
Ammunition of the main gun
16
Auxiliary gun calibre (mm)
1600
Auxiliary gun calibre (mm)
7.62
Weight (kg)
6500
Traverse arc (degree)
360

Included in:
Product Amount

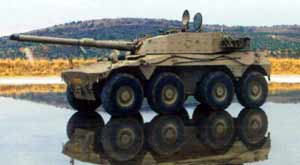

Rooikat 105 (Reconnaissance Vehicle)
1
Warrior LMT105 (Light tank)
1

Has folowing part:
Total Amount
GT-7 (Gun)
1
