Designation:

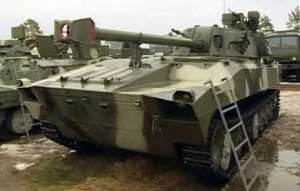

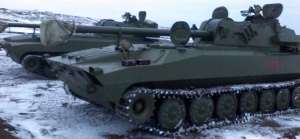

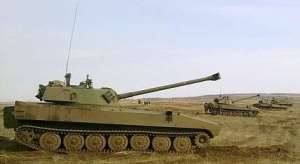

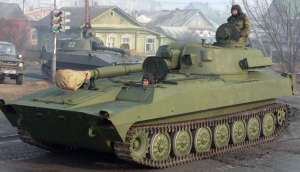

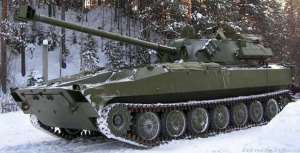

2S34 Chosta

 Info
Manufacturer: Motovilikha Plants Corporation
Product type: Armoured Vehicles
Name: Modernization of the vehicle

2S34 Chosta is modernized 2S1 self-propelled gun with the 122mm 2A31 gun replaced by the 120mm 2A80. Further improvements include a new fire control system, a battlefield observation system and the ability to fire the Kitolov 2 guided ammunition.

Specifications:
Property Value
Main weapon caliber (mm)
120
Auxiliary gun calibre (mm)
7.62
Ammunition of the main gun
40
Firing range (m)
13000
Weight (kg)
16000
Crew
4
Length (mm)
7570
Width (mm)
2850
Height (mm)
2827
Ground clearance (mm)
400
Depression (degree)
-2
Elevation (degree)
80
Traverse arc (degree)
360
Engine power output (h.p.)
300
Max. road speed (km/h)
60
Max. water speed (km/h)
5
Max. road range (km)
500
Power-to-weight ratio (h.p./t)
18.75
Ground pressure (kg/sm2)
0.492



2S34 Chosta quantities:
Country Qnt
RUSSIA RUSSIA
30
Qnt:
30
