Designation:

Dardo

Info
Manufacturer: Iveco - Oto Melara Consortium - CIO
Product type: Armoured Vehicles
Name: Command vehicle

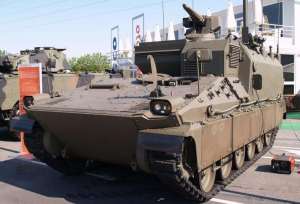

Dardo Command Post is a full-tracked lightweight vehicle, derived by Dardo Combat and used as an operational Staff Office and Command Post.

Crew is composed by a driver, a commander, a radio/transmission operator and five military people.

The hull is made of welded ballistic aluminium plates with ballistic add-on and assures the same ballistic protection of the Combat version. The power pack and the running train are identical to the Dardo Combat version ones. Dardo Command Post and all Dardo family Systems are equipped with an Automatic Fire Suppression System for crew and for power pack compartments; the activation of AFSS can be realized manually or automatically.

Specifications:
Property Value
Length (mm)
7000
Width (mm)
3100
Height (mm)
2650
Ground clearance (mm)
400
Track (mm)
2500
Weight (kg)
23000
Max. road speed (km/h)
70
Max. road range (km)
500
Gradient (%)
60
Side slope (%)
30
Trench (mm)
2500
Fording depth (mm)
1500
Vertical obstacle (mm)
850
Crew
8
Main weapon caliber (mm)
12.7
Engine power output (h.p.)
520


Has folowing part:
Total Amount
LSG 1500 (Transmission)
1
V6M TCA (Diesel engine)
1
