Designation:

LM1 Gecko RDLV

Info
Manufacturer: Land Mobility Technologies (Pty) Ltd - LMT
Product type: Auxiliary Vehicles
Name: Lightweight troop carrier vehicle

The Gecko 8x8 ATV Rapid Deployment Logistical Vehicle (RDLV) is used by the Parachute Regiment and Special Forces Brigade of the South African National Defence Force.

More than a hundred of these highly mobile vehicle systems are in service as rapid deployment logistical vehicles to transport personnel, equipment and heavy weapon systems from drop and landing zones to firing positions during airborne and special forces operations.

GECKO 8x8 ATV Special Forces / Paratroop vehicle

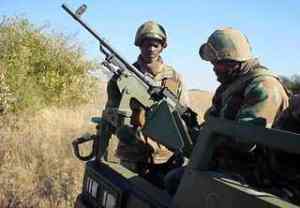

The Gecko RDLV is based on the automotive components of the Argo Centaur 8x8, manufactured by Ontario Drive and Gear, Canada, but adapted in South Africa by LMT Products to comply with the requirements of the South African National Defence Force. Typical modifications include a militarized top structure, weapon mounts, storage space, 12V/24V electrical system, communication harnesses and a strengthened lower structure to conform with air delivery and helicopter lift requirements. The vehicle also provides protection to the vehicle occupants against the detonation of 200g of TNT below any of the wheels.

Both the vehicle and the trailer have been qualified for air delivery from a C-130 (PLEDS and internal load) and helicopter transport.

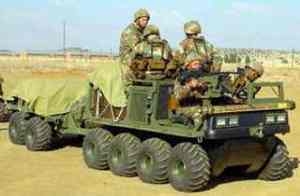

Cargo, weapons and C2 trailers

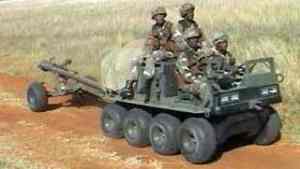

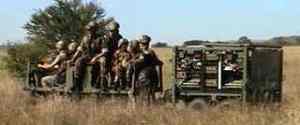

A family of trailers is in service that been developed by LMT Products, consisting of a general cargo trailer, heavy weapons trailer and command and control trailer. The C2 trailer includes all the command and control equipment as required to effectively command and control at least a battalion sized airborne operation.

Logistic support for the system has been fully developed to international standards (e.g. MIL-STD-1388-2B and DEF-STAN-0060). Technical manuals and training packages for operators and workshops are available in hard copy or IETM format.

Engine, clutch, transmission and drive

The Gecko's engine is a Daihatsu DM950T, three-cylinder in-line water-cooled turbo charged 950cc diesel engine, with a maximum output of 26kW @ 3,600r/min, 79Nm @ 2,400r/min. Its Continuously Variable Transmission (CVT) has integrated dual differentials:

  • High ratio: 11.5:1

  • Low ratio and reverse: 30.2:1

RC60 roller chains form transmission to 8mm x 40mm diameter axles with a fully adjustable tensioner for each drive chain.

Geckos have a 12V electrical system, (24V system also available) with NATO slave plug.

Steering, tyres and brakes

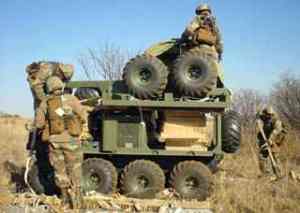

Geckos are equipped with a hydrostatic skid steer system with steering wheel. Braking is via foot pedal operated hydraulic disc brakes and hand operated mechanical parking brake. The tyres are Goodyear Rawhide III AT25 x 11.50 – 9 NHS. Provision is made to carry two spare tyres. Inflation is through an electrical compressor with standard pneumatic outlet and tyre inflation hose.

Structure

The Gecko's structure is formed by a powder-coated, tubular steel, welded construction chassis frame with a vacuum formed lower hull and hull skid plate manufactured from high density polyethylene.

Specifications:
Property Value
Number of wheels
8
Number of drive wheels
8
Max. road speed (km/h)
45
Gradient (%)
60
Side slope (%)
40
Trench (mm)
600
Vertical obstacle (mm)
300
Payload (kg)
900
Max. road range (km)
250
Fuel capacity (l)
50
Turning circle radius (mm)
3000
Max. water speed (km/h)
6
Weight (kg)
2125
Length (mm)
3112
Width (mm)
1647
Height (mm)
1443
Ground clearance (mm)
200



LM1 Gecko RDLV quantities:
Country Qnt
SOUTH AFRICA SOUTH AFRICA
105
Qnt:
105
