Designation:

Enforcer II

Info
Manufacturer: SELEX Sensors and Airborne Systems
Product type: Turrets
Name: Remote controlled weapon station

ENFORCER II SELF DEFENCE WEAPON SYSTEM

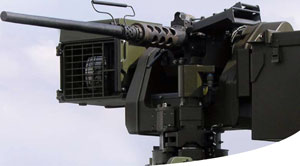

Enforcer II is a state-of-the-art stabilised Remote Controlled Weapon System (RCWS). Enforcer II is based on the combat proven Enforcer RCWS with approx 500 systems in service with the British Army on wheeled/tracked vehicles and fixed installations.

The digital control architecture provides a stabilised weapons platform for 'fire on the move' capability supported by a video auto-tracker in both daylight and TI modes. Enforcer II can also be interfaced with a Battle Management System to enable 'slew to cue' functions.

The modular design allows optimised solutions to be generated for a variety of operational requirements. Enforcer II accepts a range of weapons that can be interchanged in the field including 7.62mm General Purpose Machine Gun (GPMG), 12.7mm Heavy Machine Gun (HMG) and 40mm Automatic Grenade Launcher (AGL).

Enforcer II has many parts common to Enforcer and can be fitted as an upgrade.

KEY FEATURES

  • Stabilised weapon and sighting system

  • Auto-tracker

  • Slew-to-Cue capability

  • Fire Control System

  • BMS connectivity

  • Operated from under armour

  • Manual reversionary mode

  • Electrical and Mechanical Safety Fire Inhibit Zones (FIZ)

  • Built in Test (BIT)

  • Zero vehicle intrusion

  • Low profile/ lightweight

  • Simple installation

  • Three interchangeable weapon calibres

  • Built in growth

  • Low depression/ high elevation angles

  • Commonality with Enforcer.

Enforcer II is fitted with SELEX Galileo's Surveillance Target Acquisition and Weapon Sight (STAWS), providing a full 24-hour, all-weather surveillance and target engagement capability.

Options

  • Laser Range Finder (LRF)

  • Super elevation

  • Ballistic protection

  • Round counter

  • Remote cocking

  • Range of Weapons 7.62mm GPMG 12.7mm HMG 40mm AGL

  • Growth option for Anti-Tank Guided Weapon (ATGW)

Ammunition capacity (Linked)

  • 7.62mm 500 rounds (Option for 800)

  • 12.7mm 200 rounds (Option for 400)

  • 40mm 32 rounds (Option for 96)

TECHNICAL SPECIFICATIONS Enforcer II RCWS

  • Operating Temperature: -40°C to +55°C

  • Power Supply: 28V 35A

  • Powered traverse: n x 360 degrees

  • Powered elevation: -20 degrees to + 60 degrees

  • High speed: 1.0 rad/sec

  • Low speed: 0.5 rad/sec

  • Manual reversionary mode

  • Weight above roof assembly: 156 kg (Includes STAWS, remote cocking mechanism, wash/wipe/fluid/cables and round counter)

  • Weight in hull assembly: 40 kg

  • Height above roof: 614 mm



Has folowing part:
Total Amount
STAWS (Sight)
1
