Designation:

AJBAN ISV

Info
Manufacturer: NIMR Automotive LLC
Product type: Armoured Vehicles
Name: Armoured car

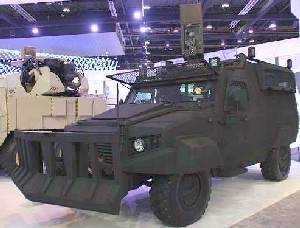

The AJBAN ISV - Internal Security Vehicle provides a non-lethal means of controlling and dispersing potentially violent crowd gatherings, whilst protecting the safety of both the vehicle's crew and demonstrators.

It to carry up to 10 equipped troops. The vehicle is armoured and fire retardant. It is fitted with a state-of-the-art C4I system, and powered by a Cummins ISBE 300 6.7L V6 diesel engine, combined with a 6-speed Allison automatic transmission.

The standard accessories of the AJBAN ISV are:

  • power management system

  • run flat wheels

  • a central tire inflation system

  • winch

AJBAN ISV can be fitted with optional systems such as:

  • NBC protection

  • an hydraulic dozer

  • a non-lethal crowd management system

  • a situational awareness system

  • a driver night vision

  • a fire suppression system

  • smoke grenade launchers

  • police light with siren and speaker

  • spotlight

  • C4I Command and Control or an ISTAR system.

AJBAN ISV is 5.7 m long, 2.6 m width and 2.7 m long. Its gross weight os 10,500 kg with a payload of 1,000 kg. It is propulse by a Cummins ISBe 300 6.7 litre, with an Allison transmission, allowing AJBAN ISV a maximum speed of 110 km/hr.

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Length (mm)
5700
Width (mm)
2600
Height (mm)
2300
Weight (kg)
10500
Payload (kg)
1000
Max. road speed (km/h)
110
