Designation:

KAPLAN-20 NG-AFV

Info
Manufacturer: FNSS Defence Systems Inc
Product type: Armoured Vehicles
Name: Infantry fighting vehicle

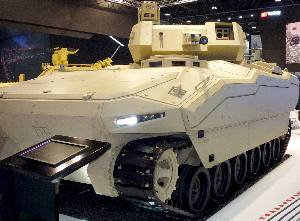

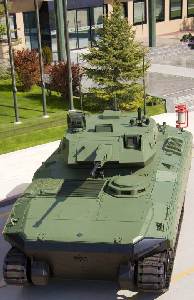

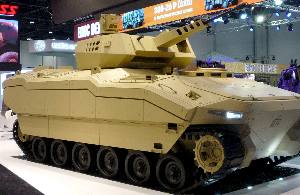

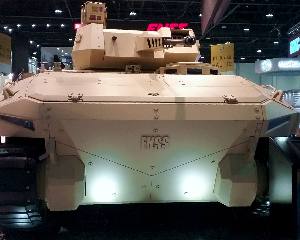

KAPLAN-20 NGAFV is a New Generation Tracked Armoured Fighting Vehicle.

The vehicle architecture contains protection systems against mines, rocket propelled grenades and kinetic energy threats. In addition up to date electronic subsystems are also integrated together with high performance power pack, heavy duty suspension and tracks which enables the vehicle to carry heavy loads such as 105 mm gun systems.

KAPLAN-20 is a new generation armored fighting vehicle that has the ability to move together with main battle tanks, has a 22-25 Hp/ton power-to-weight ratio, which takes into account the weight of the communication system and the automatic transmission.

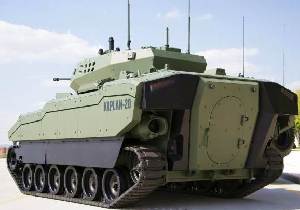

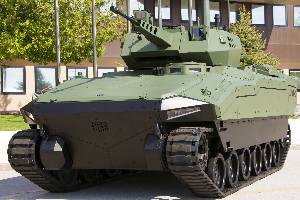

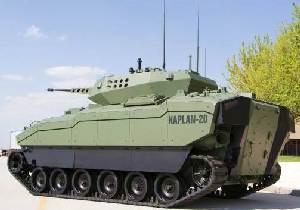

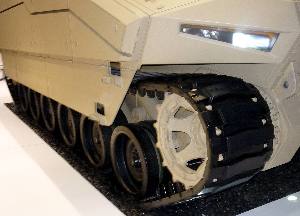

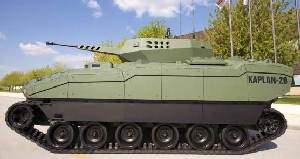

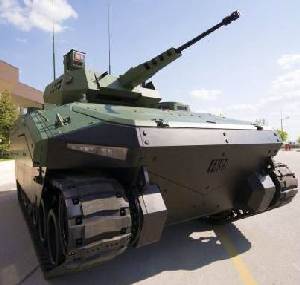

KAPLAN-20 has a low silhouette, and with its twin 6 road wheeled tracks, has the ability operate in hot/cold weather conditions at high speed not only on asphalt and stabilized highways, but also in soft soil, muddy and rough terrains. The advanced suspension system, tracks has been designed to reduce vibration and increase road holding. Access to the vehicle is gained through a personnel door on the ramp or the hydraulic ramp located at the rear of the vehicle. On the top, there is a wide hatch for personnel and another hatch that has been specifically designed to maximize the driver’s field of view. The maintenance and repair of the power pack are performed via the cabin access hatch and hatches that are at the front of the vehicle. The two fuel tanks are located at the rear for balance and are fully-armored and isolated from the vehicle to ensure the security of personnel.

KAPLAN-20 is one of the very few vehicles that have amphibious characteristics. Thanks to the two water propulsion systems located at the rear of the vehicle, KAPLAN-20 can perform in deep and water current rate. It can perform pivot turns in the water and even move backwards. In addition to this, it allows the driver to enter the water without any preparation.

The hull of KAPLAN-20 is manufactured and integrated using a ballistic welding technique. The hull is water resistant together with the hatches and lids are water-proofed via seals. While the power pack cabin and the expanded driver area are located in front of the vehicle, the gunner and the commander areas are located in the middle of the vehicle. The personnel carrier version can carry 8 troops in the rear, and the turreted version can carry 6 dismounts.

Survivability systems such as, reduced thermal signature, laser warning system and sniper detection and CBRN protection systems are also applied the vehicle.

There are also laser-protected glass periscopes that allows the driver to see outside with wide angle of view which provides, high situational awareness. Integrated night vision systems is standard in all variants.

The vehicles structural design enables to improve complete family of vehicles consist of different variants.

Misson Specific Features

  • Multi-mission capable vehicles

  • Mechanized / Armored infantry

  • Reconnaissance

  • Special operations

  • Independent infantry operations

  • Full spectrum conflicts

Protection System

  • CBRN Protection System

  • CBRN Detection System

  • A/C

  • Automatic Fire Extinguishing System

  • Reduced Thermal Signature

  • Blast and Leakage Protected Fuel Cells

  • Advanced Modular Armor Protection

  • Active Protection System

  • Mine Blast Protected Seats

  • Smoke Grenade Dischargers

Fire Control System

  • Independent Panoramic Commander Sight

  • Thermal Channel

  • Day Channel

  • LRF

  • Fire Control

  • Stabilized Gunner Sight

  • Thermal Channel

  • Day Channel

  • LRF

  • Fire Control

  • Stabilized Electric Turret Drive

Mission Equipment

  • 360 Degrees Situational Awareness

  • See Throe Armor System

  • Wireless Crew Intercom System

  • Navigation System

  • APU

  • Daylight-Responsive Interior Lighting Controls

  • Drivers Thermal Sights

  • Sniper Detection System

  • BMS

  • IFF

Specifications:
Property Value
Power-to-weight ratio (h.p./t)
25
Crew
3
Troops
8
Length (mm)
6500
Width (mm)
3500
Height (mm)
2000
Max. road speed (km/h)
70
Max. water speed (km/h)
10
Max. road range (km)
650
Gradient (%)
60
Side slope (%)
40
Main weapon caliber (mm)
30
Auxiliary gun calibre (mm)
7.62


Has folowing part:
Total Amount

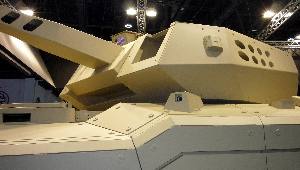

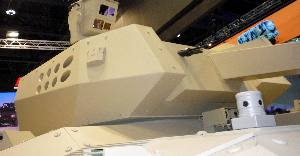

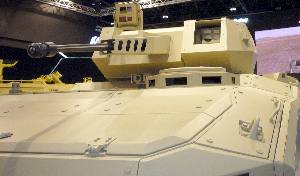

TEBER-30 (Turret)
1
