Designation:

WAVE-200

Info
Manufacturer: I.M.I. Israel Military Industries Ltd
Product type: Turrets
Name: Remote controlled weapon station

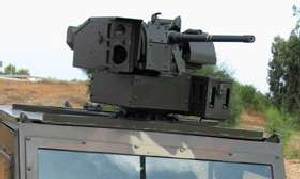

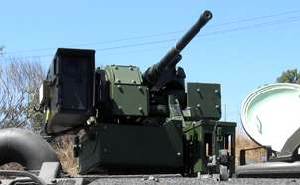

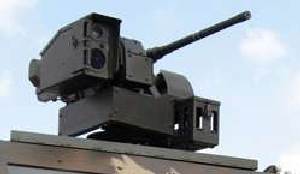

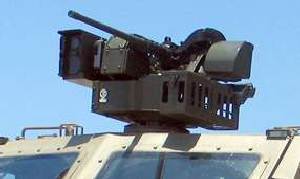

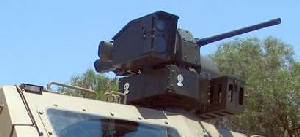

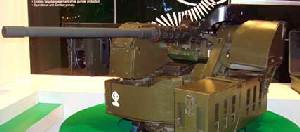

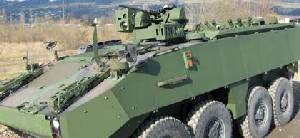

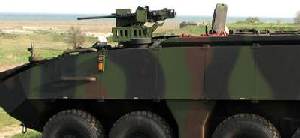

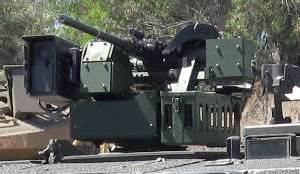

IMI has developed the Wave, an advanced, stabilized remotely operated weapon station designed for 7.62mm, 12.7mm/0.5" machineguns and 40mm Grenade Launchers. Wave is a field proven system and is currently in serial production.

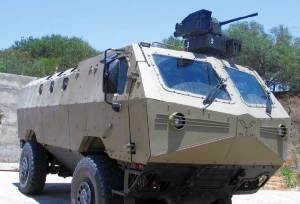

The low-profile system is designed for easy integration with the vehicle, maintaining a cost effective solution. Both weapon and optronic modules are stabilized, enabling surveillance, observation and targeting in stationary or on the move conditions, and effective engagement of moving targets. The system comes with an integral, stabilized optronic assembly, designed to be flexible and modular, accommodating specific customer furnished equipment or requirements.

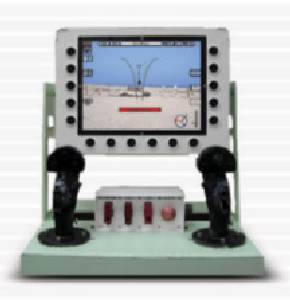

Wave is operated by a single crew member, controlling the sight and weapon from a control panel located within the protected cabin. In addition to system's control, the console also provides image-processing and enhancement, improving performance at night and under limited visibility conditions.

Specifications:
Property Value
Main weapon caliber (mm)
12.7
Weight (kg)
170
Height (mm)
627
Depression (degree)
-20
Elevation (degree)
60
Traverse arc (degree)
360
