Designation:

UT30BR

Info
Manufacturer: ARES Security and Defence
Product type: Turrets
Name: Remote controlled weapon station

The UT30BR system was designed to meet a range of requirements, offering superior performance in many combat conditions. Using the latest technology, the UT30BR system is the result of 30 years experience in development of fire systems, acquisition and automatic tracking of targets in gyro-stabilized platforms.

Features

  • Light turret, unmanned, retractable, and ideal for use in rapid deployment forces, including air transport type C130

  • Armed with an automatic 30mm cannon and equipped with a coaxial machine gun caliber 7.62mm and smoke grenades launchers

  • Allows integration with anti-tank missiles, among others

  • Monitoring system of direction and control of fire, allowing high-precision shots during the movement (continuous, intermittent or burst), with ammo counter

  • It also has modular armor protection OTAN standard STANAG 4569 level 2, expandable to 4, distributed throughout the turret, including the observation system commander, shootersights and ammunition

  • Has a warning system laser against external threats

  • Has an automatic monitoring system of targets

  • It is mounted on the roof of the vehicle without taking up space inside, providing greater safety for the crew

Advantages

  • Program underway for the Brazilian Army

  • System under nationalization process ensuring technical and logistics support in Brazil

  • Compatible with many types of tanks, armored vehicles and Navy ships

  • Solid experience in supplying weapons systems

  • Fully integrated electro-optical system

  • Meets the requirements of several military standards (MIL-STD)

Specifications

  • Cannon - ATK Bushmaster MK44 of 30mm, Munitions AP, TP and HE, 200 shots/min

  • Machine-gun - MAG 7.62mm coaxial

  • Ballistic Protection - STANAG 4569 nível - 2, 3 or 4

  • Smoke grenadeslauncher - 8 smoke grenades launchers tubes of 76mm

  • Laser Detection Unit - Detects and locate with accuracy laser light points that may pose threats

  • Stabilization Type - Stabilized spin in two axes (azimuth and elevation)

  • Shooter Station Monitor - LCD 10,4”, resolution of 1024 x 768 pixels

  • Commander Station (opcional) Monitor - LCD 10,4”, resolution of 1024 x 768 pixels

  • Lever and keys - Ergonomic with the main accessible controls

  • Optronic unit Shooter - Daytime Camera (Optical Magnification >15X, continuous; Wide field of view: 45º)

  • Thermal Camera (Narrow field of view: 3,1º; Cooled thermal sensor; Wavelengths de 3 a 5 µm; Wide field of view: 6º x 4,8º)

  • Laser rangefinder - Narrow field of view: 2º x 1,6º; Mode PI

  • Optronic unit of the commander - Daytime Camera; 10 pulse/min

  • Automatic tracking of targets (autotracking)

  • Capabilitie Hunter/kill

  • Environmental conditions - MIL-STD-810

  • Electromagnetic compatibility - MIL-STD-461

Specifications:
Property Value
Main weapon caliber (mm)
30
Auxiliary gun calibre (mm)
7.62
Number of smoke grenade launchers
8
Grenade launcher calibre (mm)
76
Depression (degree)
-12
Elevation (degree)
60
Traverse arc (degree)
360




Related Articles

Elbit Systems Successfully Completed Customer Acceptance Tests of First 30mm Unmanned Turret Supplied to the Brazilian Army (07.09.2011)


Share...
Printable Version Send by email rss favorite Facebook Vkontakte Twitter Google+

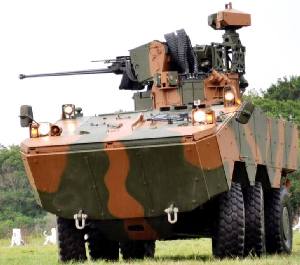

UT30BR

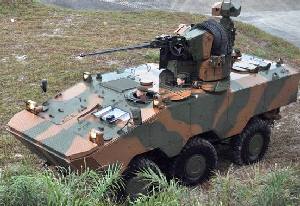

UT30BR

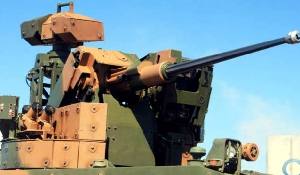

UT30BR

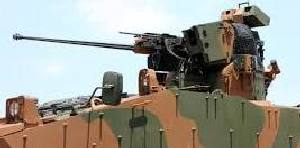

UT30BR

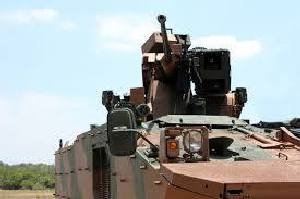

UT30BR

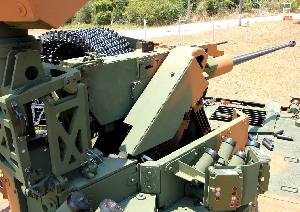

UT30BR
