Designation:

YW 307 / Type 89

 Info
Manufacturer: NORINCO - China North Industries Group Corporation - CNGC
Product type: Armoured Vehicles
Name: Self-propelled mortar

Specifications:
Property Value
Weight (kg)
15400
Crew
3
Troops
7
Length (mm)
6150
Width (mm)
3134
Height (mm)
2930
Ground clearance (mm)
427
Main weapon caliber (mm)
25
Auxiliary gun calibre (mm)
7.62
Ammunition of the main gun
400
Ammunition of the auxiliary gun
2000
Engine power output (h.p.)
320
Power-to-weight ratio (h.p./t)
20.8
Max. road speed (km/h)
60
Max. water speed (km/h)
6
Max. road range (km)
500
Gradient (%)
60
Vertical obstacle (mm)
600
Trench (mm)
2200


Has folowing part:
Total Amount
BF8L413FC (Diesel engine)
1



Share...
Printable Version Send by email rss favorite Facebook Vkontakte Twitter Google+

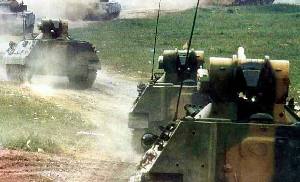

YW 307 / Type 89

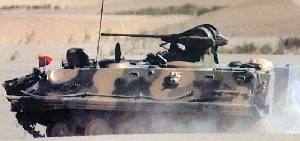

YW 307 / Type 89

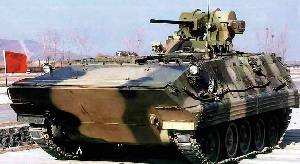

YW 307 / Type 89

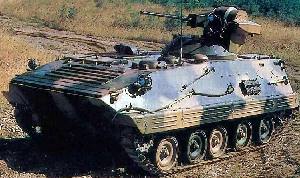

YW 307 / Type 89
