Designation:

VN5

Info
Manufacturer: NORINCO - China North Industries Group Corporation - CNGC
Product type: Armoured Vehicles
Name: Infantry fighting vehicle

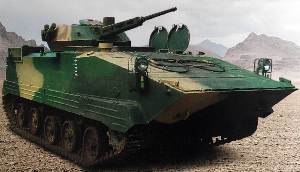

NORINCO's new VN5 light tracked infantry fighting vehicle is developed based on an airborne IFV used by the Chinese armed forces. It is ideal for armoured reconnaissance troops and special operation troops to accompany MBTs or to execute expedition missions alone.

The VN5 light IFV can also provide direct fire support to infantry in urban areas as well as various terrains, and effectively destroy light armoured vehicles, fortified structures and personnel targets.

VN5 features good strategic mobility and excellent cross-country capability. Its armament options include a 30mm cannon/Red Arrow 73 ATGM turret, a 12.7mm/14.5mm MG turret and a remote control weapon station, etc. Armour protection can be enhanced by fitting applique armour.

Features

  • 6-cylinder, water-cooled, turbocharged, inter-cooled diesel engine developing 173 kW at 2500rpm

  • Positioning and Navigation system

  • NBC protection collective

  • Air conditioner

  • Night vision equipment

Specifications:
Property Value
Crew
3
Troops
4
Weight (kg)
10000
Power-to-weight ratio (h.p./t)
23.2
Length (mm)
6010
Width (mm)
2450
Height (mm)
2280
Ground clearance (mm)
400
Max. road speed (km/h)
67
Max. water speed (km/h)
5
Max. road speed (km/h)
500
Gradient (%)
60
Side slope (%)
30
Vertical obstacle (mm)
650
Trench (mm)
1600
Engine power output (h.p.)
235
Main weapon caliber (mm)
30
