Designation:

VP14

Info
Manufacturer: NORINCO - China North Industries Group Corporation - CNGC
Product type: Auxiliary Vehicles

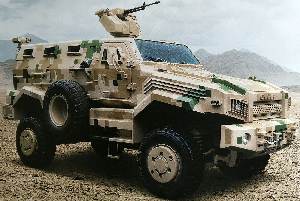

Name: Mine protected carrier

The MRAP vehicle is deployed to military and police as a high mobility platform to protect against mine, IED, bullet and other threats in anti-terrorism, anti-riot and patrol operations, etc. It adopts automatic gearbox, independent suspension, central tire inflation/ deflation system and ABS system. Its excellent cross-country mobility and high controllability make it suitable for various terrains and all-weather operations. In addition, the IR/night version system and exterior monitoring system can improve situational awareness. The automatic fire extinguishing system is used to deal with the detonation device of the terrorist. The weapon equipped can strike terrorists and guerrilla, etc.

Features

  • Mine protection - any part of the vehicle bottom can withstand 8 kg TNT equivalent from explosion (STANAG 4569 level 3b)

  • Ballistic protection against 7.62 mm ball cartridge and 7.62 mm AP (with required armor module) within 30 m

  • Excellent cross-country mobility in harsh environments thanks to its independent suspension and central tire inflation/deflation system

  • Comfortable driving with automatic transmission

  • Can drive out of dangerous zone by shifting to special gear under emergency

  • Good ergonomic design with integrated control panel and noise/vibration reduction technology

Specifications:
Property Value
Crew
2
Troops
9
Weight (kg)
11000
Length (mm)
7000
Width (mm)
2600
Height (mm)
2650
Max. road speed (km/h)
120
Max. road range (km)
700
Gradient (%)
60
Side slope (%)
40
Turning circle radius (mm)
4000
Ground clearance (mm)
420
Trench (mm)
900
Vertical obstacle (mm)
550
