Designation:

MGS-25 Aleksandar

 Info
Manufacturer: Yugoimport SDPR
Product type: Weapons & Weapon Systems
Name: Howitzer

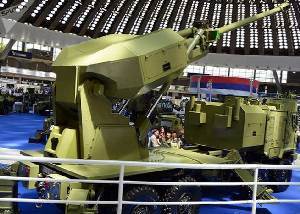

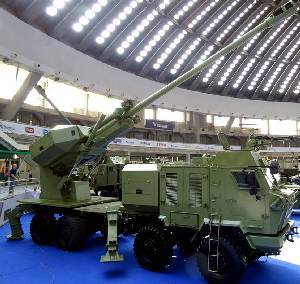

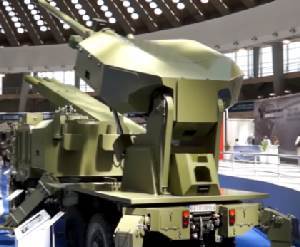

Aleksandar is a wheeled self-propelled howitzer caliber 155 mm with a barrel length of 52 mm. The company Yugoimport-SDPR first introduced it at the Partner 2017 exhibition in Belgrade.

Aleksandar is the further development of the SAU NORA B-52. It has a fully automated system for loading projectiles.

In addition, Aleksandar will be available with VLAP extended-range projectiles, produced by Yugoimport-SDPR, which allows to fire at up to 52 km range.


Specifications:
Property Value
Bridge length (mm)
52
Main weapon caliber (mm)
155
Firing range (m)
52000
Length (mm)
11400
Width (mm)
2600
Height (mm)
3850
Ground clearance (mm)
385
Track (mm)
2050
Trench (mm)
1600
Fording depth (mm)
1100
Engine power output (h.p.)
400
Max. road speed (km/h)
90
Max. road range (km)
500
Traverse arc (degree)
60
Elevation (degree)
65
Depression (degree)
-5
Ammunition of the main gun
12
Rate of fire (rds/min)
6
