Designation:

LRV 400

Info
Manufacturer: Supacat Ltd.
Product type: Auxiliary Vehicles
Name: Patrol Vehicle

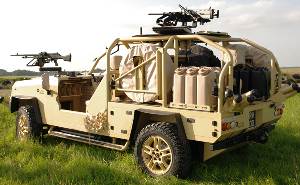

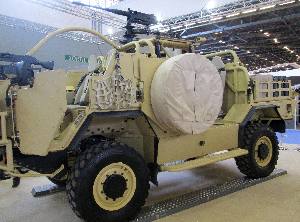

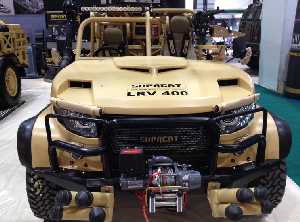

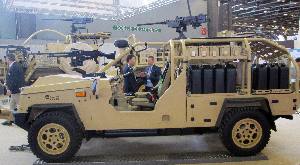

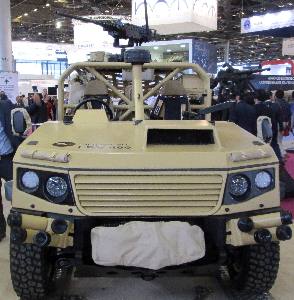

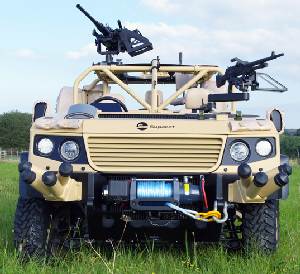

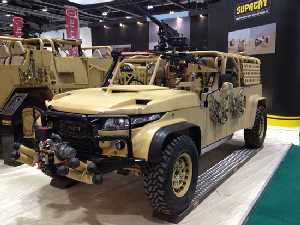

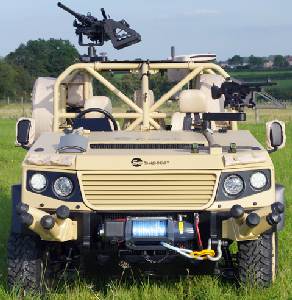

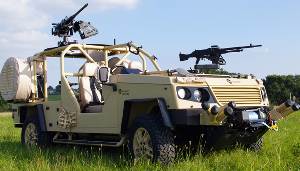

The Light Reconnaissance Vehicle 400 (LRV 400) is an exciting new addition to the Supacat range of high performance off-road military vehicles. Supacat have partnered with the race vehicle designers, Qt Services, to develop the LRV and market it into the defence sector. Supacat are able to offer this vehicle as a fully integrated military variant including the entire spectrum of Integrated Logistic Support products and services.

Using the renowned Qt Wildcat race vehicle as a start point, Supacat has combined Qt Services' world-wide pedigree in rally raid competition with Supacat's well-known military vehicle prowess, offering unrivalled performance for a vehicle in this size and weight class. High speed through harsh environments' is the LRV's strength, offering the user an ideal light weight rapid intervention vehicle for special forces, border patrol, reconnaissance or strike forces. The race proven design incorporates a tubular space-frame chassis with state of the art suspension providing superb performance, reliability and safety. The LRV's size and weight enables effective air portability, including tactical CH-47 internal loading. Whilst primarily fulfilling light force reconnaissance and strike concepts of operation, low-weight armour solutions can also be fitted as an option. A variety of communications and weapons systems can also be integrated depending on the customer's requirements.

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Weight (kg)
3500
Payload (kg)
1400
Turning circle radius (mm)
13200
Max. road speed (km/h)
170
Fuel capacity (l)
160
Max. road range (km)
1000
Fording depth (mm)
1000
Engine power output (h.p.)
236
Length (mm)
4300
Width (mm)
1800
Height (mm)
1800
Track (mm)
1640
Wheelbase (mm)
3200
Ground clearance (mm)
300
