Designation:

PSB2

Info
Manufacturer: Krauss-Maffei Wegmann GmbH & Co.KG - KMW
Product type: Armoured Vehicles
Name: Armoured vehicle-launched bridge

The Modular Bridge System (PSB2), developed for the Netherlands and German Armies, holds three bridges/bridge modules of 9.7 meters each. This enables the laying of several different combinations of bridges: 3 x 9.7 meters; 1 x 9.7 meters, 1 x 18.7 meters; and 1 x 27.7 meters. With a crew of one driver and one operator the bridges can be laid in approximately 3, 5 and 6 minutes respectively. The bridge modules are 4m wide, 0.65m in height and weigh 5000kg each. Carrying capacity allows for MLC 70 Standard Load (tracked vehicles) and MLC 100 Caution Crossing (wheeled vehicles). There are contracts of 35 vehicles for the German Bundeswehr and 14 for the Netherlands.

Specifications:
Property Value
Bridge length (mm)
27700
Carrying capacity of the bridge (kg)
100000
Height (mm)
650
Bridge width (mm)
4000


Has folowing part:
Total Amount
PSB2 (Bridge)
1


Related Articles

KMW and GDELS to produce advanced artillery systems (06.06.2008)

Greece puts first LEOPARD 2A6 HEL into service (02.06.2008)

KMW delivers 10 FENNEK to German Bundeswehr (28.11.2007)

Krauss-Maffei Wegmann and BAE Systems Australia team for LAND 17 (22.03.2007)


Share...
Printable Version Send by email rss favorite Facebook Vkontakte Twitter Google+

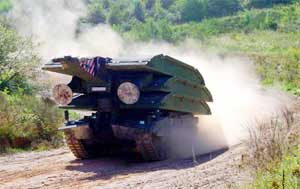

PSB2

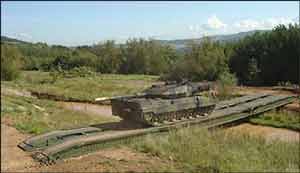

PSB2
