Designation:

Type 96A/VT2

Info
Manufacturer: NORINCO - China North Industries Group Corporation - CNGC
Product type: Armoured Vehicles
Name: Main battle tank

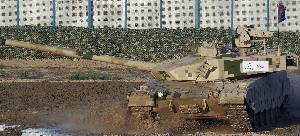

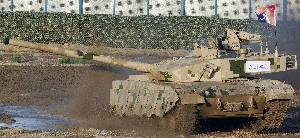

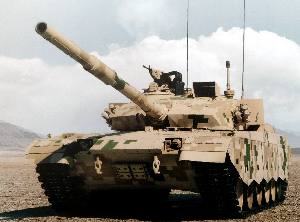

The VT2 Main Battle Tank (also known as Type 96A ) is recently developed by NORINCO by employing numerous latest technologies.

The VT2 main battle tank is equipped with an advanced Image Stabilized Fire Control System (ISFCS) as well as a fully stabilized 125mm gun and advanced ammunition. These ensure VT2's high first-round hit probability against both stationary and moving targets no matter the platform is static or on the move.

Its outstanding battlefield survivability is secured by its compact design, low silhouette, advanced composite armour and ERA. Also, the collective NBC protection and automatic fire and explosion detection/ suppression system provides the crew with further protection.

In addition, VT2's sufficient maneuverability attributes to a VI2 turbo-charged diesel engine, developing 800hp power and coupled to a manual shifting planetary transmission gearbox.

Specifications:
Property Value
Weight (kg)
42800
Crew
3
Power-to-weight ratio (h.p./t)
18.7
Length (mm)
10490
Width (mm)
3480
Height (mm)
2340
Max. road speed (km/h)
57
Engine power output (h.p.)
800
Main weapon caliber (mm)
125
AA gun caliber (mm)
12.7
Auxiliary gun calibre (mm)
7.62
Ammunition in the autoloader
22
Rate of fire (rds/min)
8
